LICENSE PLATE LIGHT REMOVAL/INSTALLATION

id091800702000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Door lock switch (liftgate) (With door lock switch (liftgate)) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION.)

(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(6)  Side spoiler (See SIDE SPOILER REMOVAL/INSTALLATION.)

(7)  Rear finisher (See REAR FINISHER REMOVAL/INSTALLATION.)

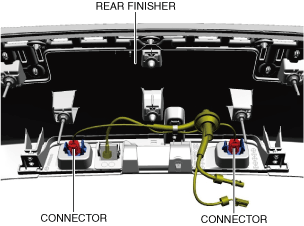

3.  Disconnect the connectors.

a30zzw00002993

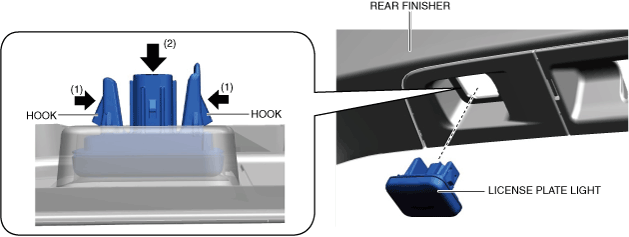

4.  While pressing the license light hooks in the direction of arrows (1) shown in the figure, press the license light in the direction of arrow (2) and detach the license light hooks from the rear finisher.

a30zzw00002994

5.  Remove the license plate light.

6.  Install in the reverse order of removal.

7.  Perform 360° view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
