EXTERIOR LIGHTING SYSTEM

id091800705400


Outline

•  Projector type headlights have been adopted to the front combination lights.
•  Auto light system has been adopted in which TNS (parking lights), headlight LO, and panel light automatically and optimally illuminate and turn off.
•  A headlight auto leveling system has been adopted which automatically adjusts the headlight optical axis up and down.
•  A coming home light has been adopted which turns on the headlight LO for a specified time using the flash-to-pass operation.
•  A leaving home light has been adopted which turns on the TNS (parking lights) and headlight LO for a specified time by operating the unlock button on the remote transmitter.
•  Outer mirrors with built-in side turn lights have been adopted.
•  An emergency stop signal system (ESS) has been adopted which flashes the hazard warning lights if the vehicle suddenly decelerates while traveling at high speed.

Function

•  The body control module (BCM) sends an exterior light on/off request signal based on the engine switch condition and light switch position signal, and turns the exterior lights on/off.

Lights off function

•  If the ignition is switched ACC or OFF, the body control module (BCM) automatically turns the lights off as follows:

Engine switch condition

Light switch position

TNS (parking lights) condition

Headlight LO condition
ACC or OFF
OFF
Off
Off
AUTO
Off
Off
TNS (parking lights)
On
Off
HEAD
Off
Off


Structure/Construction

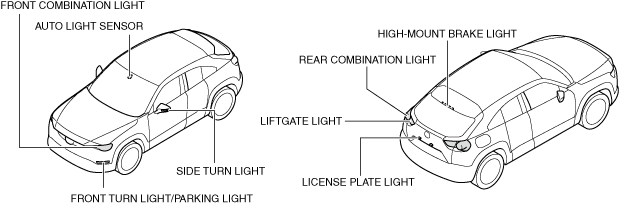

System structure

a30zzn00001839

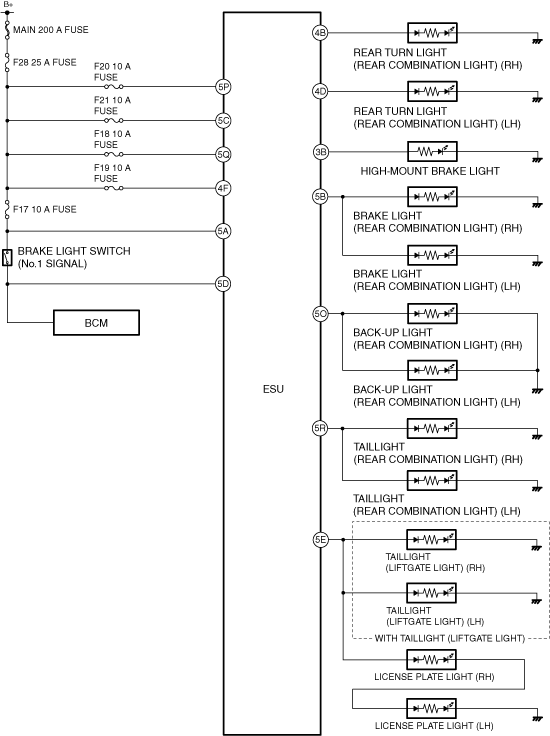

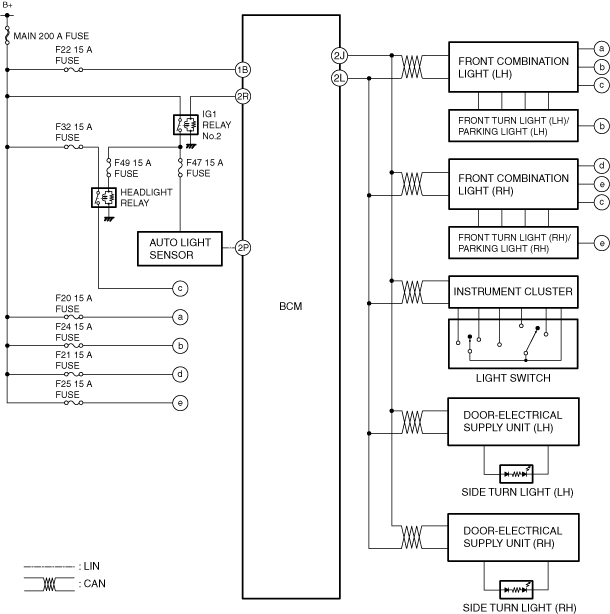

System wiring diagram

a30zzn00001840
a30zzn00001841


Operation


Headlights LO, headlights HI, parking lights, front turn lights

•  Refer to the [FRONT COMBINATION LIGHT], [TURN LIGHT SYSTEM], and [FRONT TURN LIGHT/PARKING LIGHT]. (See FRONT COMBINATION LIGHT.) (See TURN LIGHT SYSTEM.) (See FRONT TURN LIGHT/PARKING LIGHT.)


Running lights

•  Refer to the [RUNNING LIGHT SYSTEM]. (See RUNNING LIGHT SYSTEM.)


Side turn lights

•  Refer to the [SIDE TURN LIGHT] and [TURN LIGHT SYSTEM]. (See SIDE TURN LIGHT.) (See TURN LIGHT SYSTEM.)


Rear turn lights, brake lights, taillights (rear combination light)

•  Refer to the [REAR COMBINATION LIGHT] and [TURN LIGHT SYSTEM]. (See REAR COMBINATION LIGHT.) (See TURN LIGHT SYSTEM.)


Back-up lights, taillights (liftgate light) (with taillights (liftgate light))

•  Refer to the [LIFTGATE LIGHT]. (See LIFTGATE LIGHT.)


Hazard warning lights

•  Refer to the [FRONT TURN LIGHT/PARKING LIGHT], [SIDE TURN LIGHT], and [REAR COMBINATION LIGHT]. (See FRONT TURN LIGHT/PARKING LIGHT.) (See SIDE TURN LIGHT.) (See REAR COMBINATION LIGHT.)


High-mount brake light

•  Refer to the [HIGH-MOUNT BRAKE LIGHT]. (See HIGH-MOUNT BRAKE LIGHT.)


License plate lights

•  Refer to the [LICENSE PLATE LIGHT]. (See LICENSE PLATE LIGHT.)
