AUDIO AMPLIFIER REMOVAL/INSTALLATION

id092000701000

Warning

•  Handling a front seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

1.  Remove the front seat (RH) installation bolts. (With power seat system) (See FRONT SEAT REMOVAL/INSTALLATION.)

2.  Perform the following procedure. (Without seat warmer system)

(1)  Switch the ignition off.

(2)  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Perform the following procedure. (With seat warmer system)

(1)  Verify if the ground plate needs to be disconnected and if it does, disconnect it. (See GROUND PLATE DISCONNECTION/CONNECTION.)

4.  Remove the front seat (RH). (See FRONT SEAT REMOVAL/INSTALLATION.)

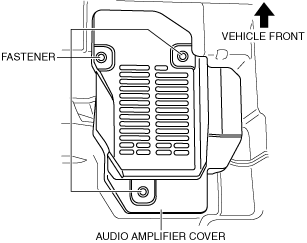

5.  Remove the fasteners.

a30zzw00005788

6.  Remove the audio amplifier cover.

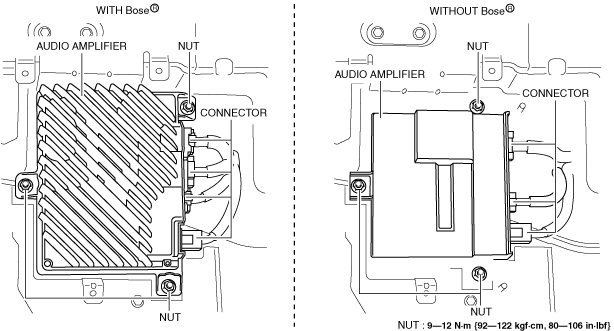

7.  Remove the nuts.

a30zzw00005789

8.  Disconnect the connectors.

9.  Remove the audio amplifier.

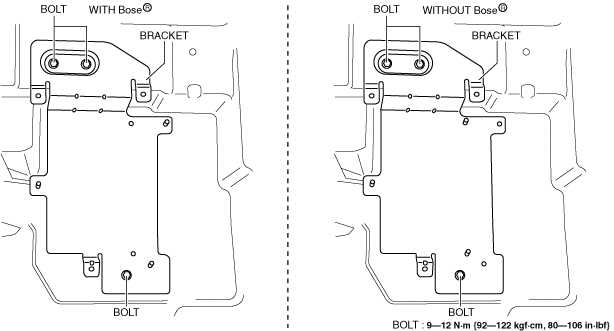

10.  To remove the bracket, perform the following procedure.

(1)  Remove the bolts.

a30zzw00005790

(2)  Remove the bracket.

11.  Install in the reverse order of removal.
