REAR MOUNT CAMERA REMOVAL/INSTALLATION

id092000702600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Door lock switch (liftgate) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION.)

(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(6)  Side spoiler (See SIDE SPOILER REMOVAL/INSTALLATION.)

(7)  Rear finisher (See REAR FINISHER REMOVAL/INSTALLATION.)

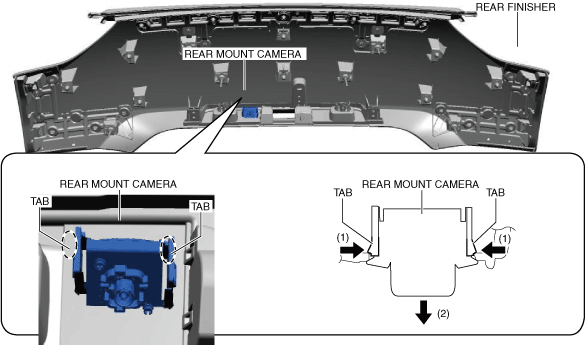

3.  While pressing the tabs of the rear mount camera in the direction of arrows (1) shown in the figure, move the rear mount camera in the direction of arrow (2) to detach the tabs from the rear finisher.

a30zzw00000387

4.  Remove the rear mount camera.

5.  Install in the reverse order of removal.

6.  Perform 360° view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
