COWL SIDE REINFORCEMENT REMOVAL [PANEL REPLACEMENT]

id098008741700

Symbol Mark

ac5uub00000086

Removal Procedure

1.  Remove the apron reinforcement (lower) (front). (See APRON REINFORCEMENT (LOWER) (FRONT) REMOVAL [PANEL REPLACEMENT].)

2.  Remove the apron reinforcement (lower) (rear). (See APRON REINFORCEMENT (LOWER) (REAR) REMOVAL [PANEL REPLACEMENT].)

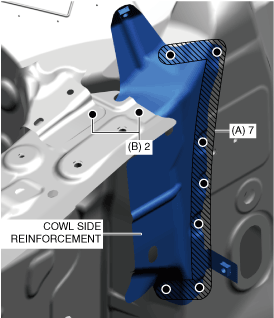

3.  Drill the spot welds in the 7 locations in area A shown in the figure.

Note

•  When drilling the spot welds in the 7 locations in area A shown in the figure, do not drill through-holes in consideration of the workability when installing.

4.  Drill the spot welds in the 2 locations in area B shown in the figure.

a30zzb00000008

5.  Remove the cowl side reinforcement.
