360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION

id152000103400

Warning

•  Handling a seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling a front seat equipped with a side air bag. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

1.  Remove the front seat (LH) installation bolts. (With power seat) (See FRONT SEAT REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts.

(1)  Front seat (LH) (See FRONT SEAT REMOVAL/INSTALLATION.)

(2)  Backup power supply (See BACKUP POWER SUPPLY REMOVAL/INSTALLATION.)

4.  Remove the bolts.

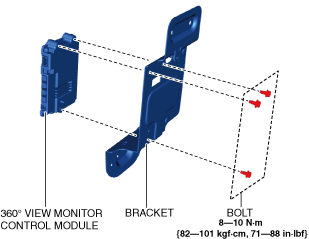

am3zzw00022259

5.  Remove the 360° view monitor control module.

6.  Install in the reverse order of removal.

7.  If the 360° view monitor control module is replaced, perform the following procedure.

(1)  Switch the ignition ON (engine off) and wait for 5 s or more to complete the global central configuration (GCC) for the 360° view monitor control module.

(2)  Switch the ignition OFF and wait for 5 s or more.

(3)  Switch the ignition ON again (engine off or on) and wait for 5 s or more.

(4)  Clear the DTC. (See CLEARING DTC.)

(5)  Perform the 360° view monitor system aiming. (See 360°VIEW MONITOR SYSTEM AIMING.)
