1. Assemble in the order indicated in the table.
|
1
|
Reverse shift rod end
|
|
2
|
5th/6th shift rod end
|
|
3
|
Crank lever
|
|
4
|
Change bush
|
|
5
|
Detent ball, spring seat, spring
|
|
6
|
5th/6th shift rod
(See Shift Rod Assembly Note.)
|
|
7
|
Stopper block
|
|
8
|
Shift gate
|
|
9
|
Interlock pin
|
|
10
|
Detent ball, spring seat, spring
|
|
11
|
Interlock pin
|
|
12
|
3rd/4th shift rod
(See Shift Rod Assembly Note.)
|
|
13
|
Stopper block
|
|
14
|
Interlock pin
|
|
15
|
Detent ball, spring seat, spring
|
|
16
|
Interlock pin
|
|
17
|
1st/2nd shift rod
(See Shift Rod Assembly Note.)
|
|
18
|
1st/2nd shift fork
|
|
19
|
Interlock pin
|
|
20
|
Detent ball, spring seat, spring
|
|
21
|
Reverse shift rod
(See Shift Rod Assembly Note.)
|
|
22
|
Change bush
|
|
23
|
5th/6th shift fork
|
|
24
|
5th/6th shift rod
|
|
25
|
Change frame
|
|
26
|
Baffle plate
|
|
27
|
Top cover
|

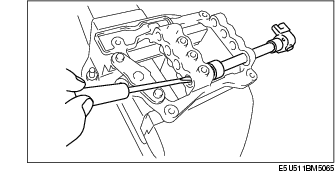

1. Install each shift rod.
