ENGINE DISASSEMBLY/ASSEMBLY [L8, LF]

1. Remove the transmission from the engine. (See TRANSMISSION REMOVAL/INSTALLATION [M15M-D].)(See TRANSMISSION REMOVAL/INSTALLATION [P66M-D].) (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [SJ6A-EL].)

2. Remove the following parts:

(1) The clutch unit (MT) (See CLUTCH UNIT REMOVAL/INSTALLATION.)

(2) The ignition coil (See IGNITION COIL REMOVAL/INSTALLATION [L8, LF].)

(3) The CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [L8, LF].)

(4) The power steering oil pump (See POWER STEERING OIL PUMP REMOVAL/INSTALLATION.)

(5) The fuel distributor and fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [L8, LF].)

(6) The intake-air system (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF].)

(7) The exhaust system (See EXHAUST SYSTEM REMOVAL/INSTALLATION [L8, LF].)

(8) The CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [L8, LF].)

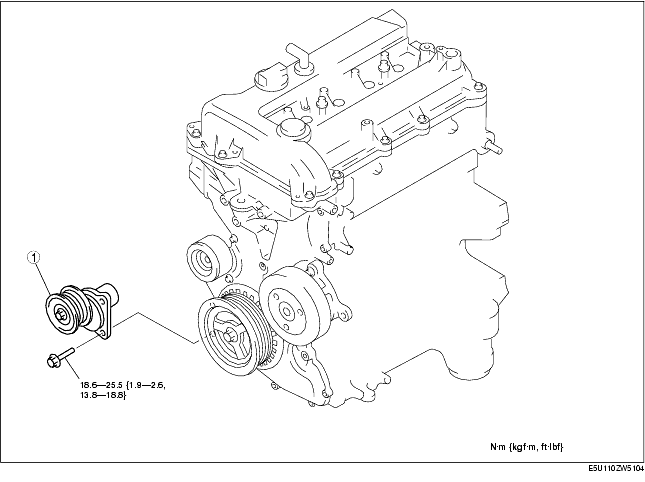

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.
