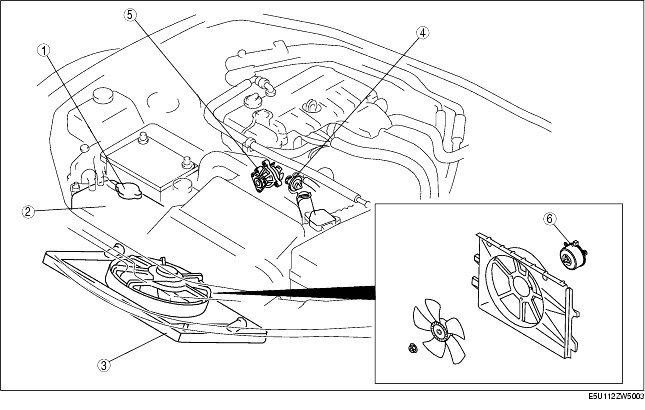

COOLING SYSTEM LOCATION INDEX [L8, LF]


1	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [L8, LF].)
2	Coolant reserve tank (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [L8, LF].)
3	Radiator (See RADIATOR REMOVAL/INSTALLATION [L8, LF].)
4	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION [L8, LF].) (See THERMOSTAT INSPECTION [L8, LF].)
5	Water pump (See WATER PUMP REMOVAL/INSTALLATION [L8, LF].)
6	Cooling fan motor (See FAN MOTOR REMOVAL/INSTALLATION [L8, LF].) (See FAN MOTOR INSPECTION [L8, LF].)
