GENERATOR REMOVAL/INSTALLATION [L8, LF]

Warning

• Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.

• When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery negative cable before performing the following operation.

Caution

• The generator can be damaged by the heat from the exhaust manifold. Make sure the generator duct is installed securely.

1. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

2. Remove the drive belt. (See DRIVE BELT REPLACEMENT [L8, LF].)

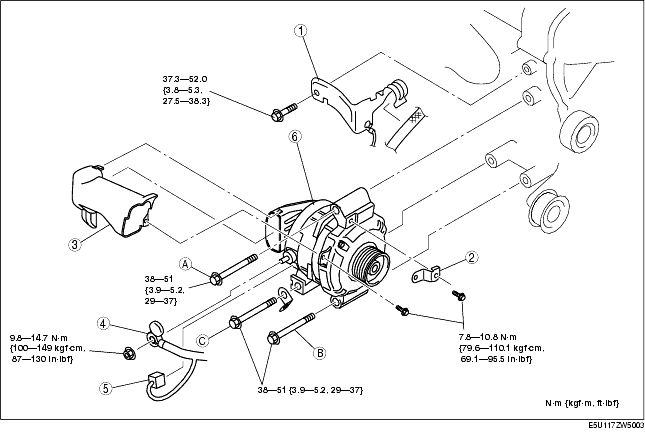

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

Generator Installation Note

1. Tighten bolt A temporarily.

2. Tighten bolt B, C to the specified tightening torque.

3. Tighten bolt A to the specified tightening torque.
