BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [L8, LF]

Note

• Before performing the following inspection, make sure to follow the procedure as indicated in the troubleshooting flowchart. (See Troubleshooting Procedure.)

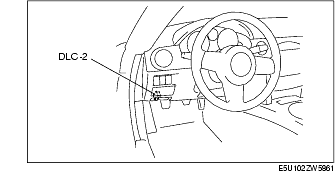

1. Connect the M-MDS to the DLC-2.

2. Turn the ignition switch to the ON position.

3. Select BARO PID on the M-MDS.

4. Verify that the BARO PID (pressure) and barometric pressure are practically equal.

• If not as verified, replace the PCM. (See PCM REMOVAL/INSTALLATION [L8, LF].)
