1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
.
|

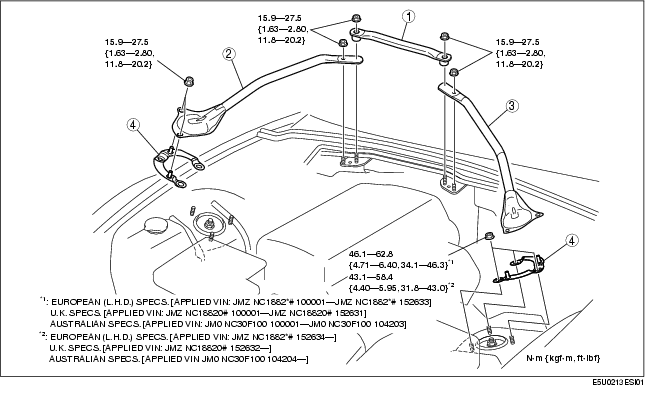

1
|
Front suspension tower bar (joint)
|
|
2
|
Front suspension tower bar (right side)
|
|
3
|
Front suspension tower bar (left side)
|
|
4
|
Plate
(See Plate Installation Note.)
|

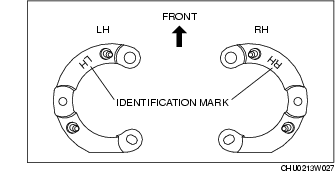

1. Install the plates with the identification marks facing upward.
