DTC |
C1134 |

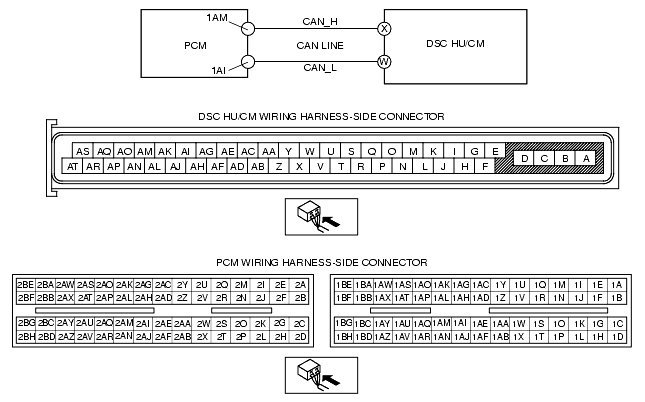

PCM communication system |
|
|
DETECTION CONDITION |
• The shift position signal from the PCM is not within specification.
|
||
|
POSSIBLE CAUSE |
• An abnormal signal is sent from the PCM.
|
||
|
|
|||
|
DTC |
C1134 |
PCM communication system |
|
|
DETECTION CONDITION |
• The shift position signal from the PCM is not within specification.
|
||
|
POSSIBLE CAUSE |
• An abnormal signal is sent from the PCM.
|
||
|
|
|||
Diagnostic procedure
|
STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|
INSPECT FOR PCM MALFUNCTION
• Turn the ignition switch off.
• Using the M-MDS, perform the DTC inspection for the PCM and TCM.
• Are any DTCs detected?
|
Yes
|
Go to applicable DTC inspection.
(See DTC TABLE [L8, LF].)
|
|
No
|
Go to the next step.
|
||
|
2
|
VERIFY DTC TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the memory.
(See Clearing DTCs Procedures.)
• Is the same DTC present?
|
Yes
|
Repeat the inspection from Step 1.
If the malfunction recurs, replace the DSC HU/CM, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
3
|
VERIFY AFTER REPAIR PROCEDURE
• Is any other DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC Table.)
|
|
No
|
DTC troubleshooting completed.
|
||
