PARKING BRAKE LEVER REMOVAL/INSTALLATION
id041200801600
1. Remove the middle pipe. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [L8, LF].)
2. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)
3. Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. After installation, inspect the parking brake stroke and adjust if necessary.

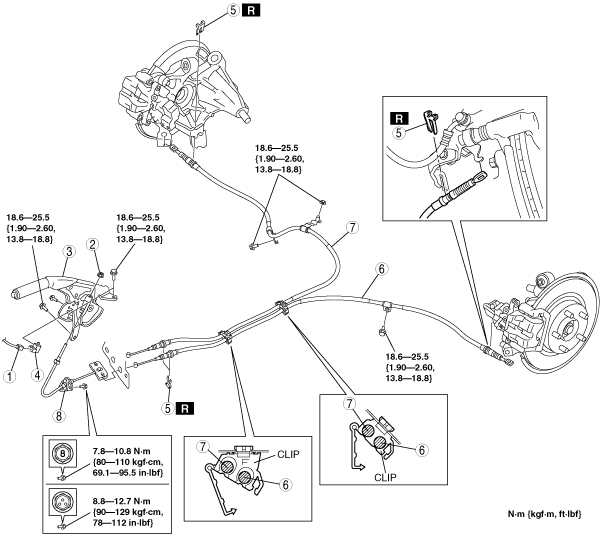

amxzzw00002492
|
|
1
|
Parking brake switch connector
|
|
2
|
Adjusting nut
|
|
3
|
Parking brake lever
|
|
4
|
Parking brake switch
|
|
5
|
Clip
|
|
6
|
Rear parking brake cable (LH)
|
|
7
|
Rear parking brake cable (RH)
|
|
8
|
Front parking brake cable
|
Parking Brake Lever Removal Note
1. Partially peel back the floor mat and remove the bolt shown in the figure.
amxzzw00002493
|
2. Remove the two bolts.
3. Remove the parking brake lever.
