1. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)
2. Remove the partition board. (See PARTITION BOARD REMOVAL/INSTALLATION.)
3. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
4. Remove the fuel-filler pipe protector. (See FUEL TANK REMOVAL/INSTALLATION [L8, LF].)

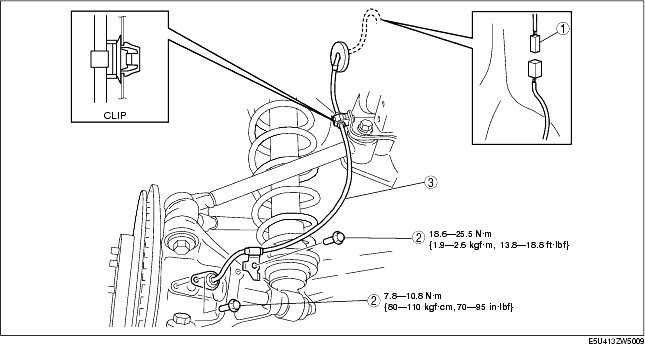

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
