ROAD TEST [SJ6A-EL]
id051311248900
-
Warning
-
• When performing a road test, be aware of other vehicles, people, impediments to avoid an accident.
-
Note
-
• When the legal speed limit must be exceeded, use a chassis dynamometer instead of performing a road test.
Road Test Preparation
1. Inspect the engine coolant level. (See ENGINE COOLANT LEVEL INSPECTION [L8, LF].)
2. Inspect the engine oil level. (See ENGINE OIL LEVEL INSPECTION [L8, LF].)
3. Inspect the ATF level. (See AUTOMATIC TRANSMISSION FLUID (ATF) LEVEL ADJUSTMENT [SJ6A-EL].)
4. Inspect the idle speed. (See Idle Speed Inspection.)
5. Inspect the ignition timing. (See Ignition Timing Inspection.)
6. Wait until the engine and transmission reach normal operating temperature.

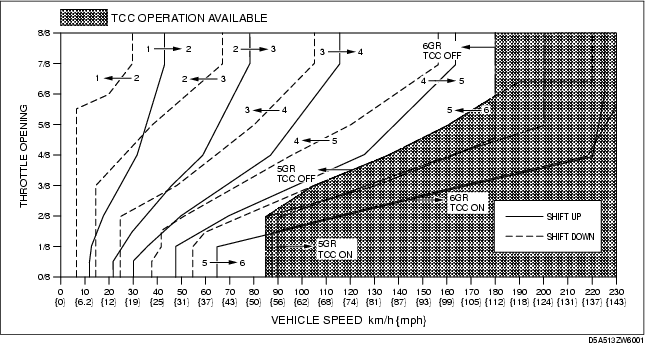

Shift Diagram
D range (normal mode)
D Range Test
1. Perform road test preparation. (See Road Test Preparation.)
2. Shift the selector lever to the D range.
3. Accelerate with the throttle half and then wide open.
4. Verify that 1→2, 2→3, 3→4, 4→5, and 5→6 upshifts can be obtained. The shift points must be as shown in the table below.
-
• If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
5. Drive the vehicle in 6GR, 5GR, 4GR, 3GR, 2GR and verify that kickdown occurs for 6→5, 5→4, 4→3, 3→2, and 2→1 downshifts, and that the shift points are as shown in the table below.
-
• If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
6. Decelerate the vehicle and verify that engine braking effect is felt in 4GR, 5GR, and 6GR.
-
• If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
7. Drive the vehicle and verify that TCC operation is obtained. The operation points must be as shown in the table below.
-
• If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
Shift point table
|
Range
|
Mode
|
Throttle condition
|
Shift
|
Vehicle speed
(km/h {mph})
|
Turbine speed
(rpm)
|
|
D
|
NORMAL
|
Wide open throttle
|
D1→D2
|
40-46 {25-28}
|
5,150-5,900
|
|
D2→D3
|
76-84 {48-52}
|
5,700-6,250
|
|
D3→D4
|
112-122 {70-75}
|
5,750-6,200
|
|
D4→D5
|
158-168 {98-104}
|
5,750-6,100
|
|
TCC ON (D5)
|
195-205 {121-127}
|
5,100-5,300
|
|
D5→D6
|
220-230 {137-142}
|
4,700-4,850
|
|
TCC ON (D6)
|
227-237 {141-146}
|
4,850-5,000
|
|
Half throttle
|
D1→D2
|
26-34 {17-21}
|
3,350-4,400
|
|
D2→D3
|
48-63 {30-39}
|
3,550-4,750
|
|
D3→D4
|
71-94 {45-58}
|
3,600-4,800
|
|
D4→D5
|
118-129 {74-79}
|
4,300-4,650
|
|
TCC ON (D5)
|
149-176 {93-109}
|
3,850-4,550
|
|
D5→D6
|
206-222 {128-137}
|
5,350-5,750
|
|
TCC ON (D6)
|
204-220 {127-136}
|
4,350-4,650
|
|
Closed throttle position
|
D6→D5
|
52-58 {33-35}
|
1,150-1,200
|
|
D5→D4
|
35-41 {22-25}
|
950-1,050
|
|
D4→D3
|
22-28 {14-17}
|
850-1,000
|
|
D3→D2
|
12-18 {8-11}
|
650-900
|
|
D2→D1
|
4-10 {3-6}
|
300-700
|
|
Kickdown
|
D6→D5
|
215-225 {134-139}
|
4,600-4,750
|
|
D5→D4
|
152-162 {95-100}
|
3,950-4,200
|
|
D4→D3
|
100-110 {62-68}
|
3,650-4,000
|
|
D3→D2
|
63-71 {40-44}
|
3,250-3,600
|
|
D2→D1
|
27-33 {17-20}
|
2,050-2,450
|
|
POWER
|
Wide open throttle
|
D1→D2
|
40-46 {25-28}
|
5,150-5,900
|
|
D2→D3
|
76-84 {48-52}
|
5,700-6,250
|
|
D3→D4
|
112-122 {70-75}
|
5,750-6,200
|
|
D4→D5
|
158-168 {103-108}
|
5,750-6,100
|
|
D5→D6
|
220-230 {137-142}
|
5,750-5,950
|
|
Half throttle
|
D1→D2
|
30-37{19-22}
|
3,850-4,800
|
|
D2→D3
|
50-65 {31-40}
|
3,750-4,850
|
|
D3→D4
|
76-99 {48-61}
|
3,900-5,050
|
|
D4→D5
|
126-138 {79-85}
|
4,600-5,000
|
|
D5→D6
|
206-222 {128-137}
|
5,350-5,750
|
|
Closed throttle position
|
D6→D5
|
82-88 {51-54}
|
1,750-1,850
|
|
D5→D4
|
57-63 {36-39}
|
1,500-1,600
|
|
D4→D3
|
27-33 {17-20}
|
1,000-1,200
|
|
D3→D2
|
12-18 {8-11}
|
650-900
|
|
D2→D1
|
4-10 {3-6}
|
300-700
|
|
Kickdown
|
D6→D5
|
215-225 {134-139}
|
4,600-4,750
|
|
D5→D4
|
152-162 {95-100}
|
3,950-4,200
|
|
D4→D3
|
100-110 {62-68}
|
3,650-4,000
|
|
D3→D2
|
63-71 {40-44}
|
3,250-3,600
|
|
D2→D1
|
27-33 {17-20}
|
2,050-2,450
|
M Range Test
1. Perform road test preparation. (See Road Test Preparation.)
2. Shift the selector lever to M range.
3. Verify that 1→2, 2→3, 3→4, 4→5, and 5→6 upshifts and 6→5, 5→4, 4→3, 3→2, and 2→1 downshifts are obtained by manual shifting.
-
• If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
4. Decelerate the vehicle and verify that 6→5, 5→4, 4→3, 3→2, and 2→1 downshifts are obtained. The shift points must be as shown in the table below.
-
• If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
5. Decelerate the vehicle and verify that engine braking effect is felt in all gears.
-
• If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
6. Drive the vehicle and verify that TCC operation is obtained in 5GR and 6GR. The operation points must be as shown in the table below.
-
• If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
Vehicle speed at shift point table
|
Range
|
Mode
|
Throttle condition
|
Shift
|
Vehicle speed
km/h {mph}
|
Turbine speed
(rpm)
|
|
M
|
Normal
|
Half throttle
|
TCC ON (D5)
|
150-177 {93-109}
|
3,900-4,600
|
|
TCC ON (D6)
|
204-220 {127-136}
|
4,350-4,650
|
|
All round
|
D6→D5
|
44-50 {28-31}
|
950-1,050
|
|
D5→D4
|
35-41 {22-25}
|
950-1,050
|
|
D4→D3
|
17-23 {11-14}
|
650-800
|
|
D3→D2
|
12-18 {8-11}
|
650-900
|
|
D2→D1
|
9-15 {6-9}
|
700-1,100
|
P Position Test
1. Shift into the P position on a gentle slope. Release the brake, and verify that the vehicle does not roll.
-
• If there is any malfunction, inspect the AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
