STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|
• Inspect the evaporator temperature sensor. (See EVAPORATOR TEMPERATURE SENSOR INSPECTION.)
• Is it normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the evaporator temperature sensor. (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION.)
|
||
|
2
|
• Disconnect the climate control unit connector and the evaporator temperature sensor connector.

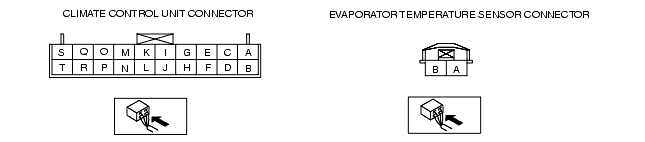

• Is there an open circuit in the wiring harness between the following terminals of the climate control unit and the evaporator temperature sensor?
|
Yes
|
Repair the wiring harness.
|
|
No
|
Go to the next step.
|
||
|
3
|
• Is there a short circuit to ground in the wiring harness between climate control unit terminal M and evaporator temperature sensor terminal B?
|
Yes
|
Repair the wiring harness.
|
|
No
|
Connect the climate control unit connector, then go to the next step.
|
||
|
4
|
• Turn the ignition switch to the ON position.
• Inspect the voltage at the following climate control unit terminal (wiring harness-side).
• Is the voltage normal? (approx. 5 V)
|
Yes
|
The system is normal at present. (Clear the malfunction from the memory.)
|
|
No
|
Inspect the connection of the climate control unit connector. (See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)
|
||
|
|
|||
