REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION


id074000802600

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3. Discharge the refrigerant from the system. (See REFRIGERANT CHARGING.)

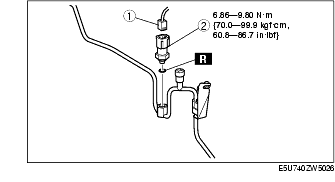

4. Remove in the order indicated in the table.

1
Refrigerant pressure switch connector
2
Refrigerant pressure switch

5. Install in the reverse order of removal.

Refrigerant Pressure Switch Installation Note

1. Apply compressor oil to the O-ring joints.
