DTC B1881, B1882, B1883, B1886

id080200801500

DTC

B1881

Passenger-side pre-tensioner seat belt circuit resistance high

B1882

Passenger-side pre-tensioner seat belt circuit short to power supply

B1883

Passenger-side pre-tensioner seat belt circuit short to body ground

B1886

Passenger-side pre-tensioner seat belt circuit resistance low
DETECTION CONDITION
Warning
•  Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
•  Resistance other than 1.3—4.7 ohms detected in passenger-side pre-tensioner seat belt circuit
•  Malfunction in wiring harness between passenger-side pre-tensioner seat belt and SAS control module
POSSIBLE CAUSE
•  Passenger-side pre-tensioner seat belt connector malfunction
•  Open or short circuit in wiring harness between passenger-side pre-tensioner seat belt and SAS control module
•  Passenger-side pre-tensioner seat belt malfunction
•  SAS control module malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
INSPECT PASSENGER-SIDE PRE-TENSIONER SEAT BELT CONNECTOR
Warning
•  Handling the component parts improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components.
•  Turn the ignition switch to the LOCK position.
•  Remove the battery cover.
•  Disconnect the negative battery cable and wait for 1 min or more. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)
•  Remove the back trim. (See BACK TRIM REMOVAL/INSTALLATION.)
•  Disconnect the passenger-side pre-tensioner seat belt connector. (See SEAT BELT REMOVAL/INSTALLATION.)
•  Inspect the passenger-side pre-tensioner seat belt connector. (Corrosion, damage, and disconnected pins)
•  Is there any malfunction of the passenger-side pre-tensioner seat belt connector?
Yes
Replace the passenger-side pre-tensioner seat belt wiring harness.
No
Go to the next step.
2
INSPECT WIRING HARNESS BETWEEN SAS CONTROL MODULE AND PASSENGER-SIDE PRE-TENSIONER SEAT BELT
•  Remove the column cover.
•  Disconnect the clock spring connector.
•  Remove the glove compartment.
•  Disconnect the passenger-side air bag module connector.
•  Disconnect the driver and passenger-side seat connectors.
•  Remove the driver-side pre-tensioner seat belt connectors.
•  Remove the console panel.
•  Disconnect the SAS control module connectors.

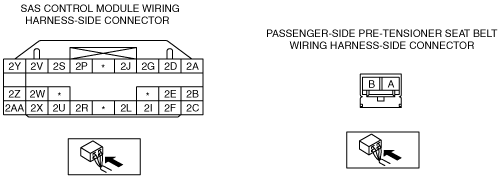

•  Inspect the wiring harnesses between SAS control module connector terminal 2Y and passenger-side pre-tensioner seat belt connector terminal A, and SAS control module connector terminal 2V and passenger-side pre-tensioner seat belt connector terminal B for the following:
―  Short circuit between terminals
―  Short to body ground
―  Open circuit
Note
•  Inspect for continuity while shaking the wiring harness between the SAS control module and passenger-side pre-tensioner seat belt.
•  Is the wiring harness normal?
Yes
Go to the next step.
No
Replace the wiring harness between the SAS control module and the passenger-side pre-tensioner seat belt.
3
INSPECT THE WIRING HARNESS BETWEEN THE SAS CONTROL MODULE AND PASSENGER-SIDE PRE-TENSIONER SEAT BELT FOR A SHORT CIRCUIT TO THE POWER SUPPLY
•  Connect the negative battery cable.
•  Turn the ignition switch to the ON position with SAS control module connector and passenger-side pre-tensioner seat belt connector disconnected.
•  Measure the voltage of SAS control module connector terminals 2Y and 2V of SAS control module harness side connector.
Note
•  Measure the voltage while shaking the wiring harness between the SAS control module and passenger-side pre-tensioner seat belt.
•  Is the voltage measured?
Yes
Replace the wiring harness between the SAS control module and the passenger-side pre-tensioner seat belt.
No
Go to the next step.
4
INSPECT PASSENGER-SIDE PRE-TENSIONER SEAT BELT
•  Turn the ignition switch to the LOCK position.
•  Disconnect the negative battery cable and wait for 1min or more.
•  Connect the SST (Fuel and thermometer checker) or apply 2 ohms resistance to the passenger-side pre-tensioner seat belt connector terminals A and B.
•  Set the SST (Fuel and thermometer checker) to 2 ohms.
•  Except for the passenger-side pre-tensioner seat belt connector, reconnect all disconnected connectors.
•  Connect the negative battery cable.
•  Turn the ignition switch to the ON position.
•  Clear the DTC for the SAS control module using the M-MDS.
•  Perform the DTC inspection for the SAS control module using the M-MDS.
•  Are the same DTCs present?
Yes
Go to the next step.
No
Replace the passenger-side pre-tensioner seat belt.
(See SEAT BELT REMOVAL/INSTALLATION.)
5
PERFORM SAS CONTROL MODULE DTC INSPECTION
•  Turn the ignition switch to the LOCK position.
•  Disconnect the negative battery cable and wait for 1min or more.
•  Disconnect the SST (Fuel and thermometer checker) or the 2 ohms resistance.
•  Connect the passenger-side pre-tensioner seat belt connector.
•  Connect the negative battery cable.
•  Turn the ignition switch to the ON position.
•  Clear the DTC for the SAS control module using the M-MDS.
•  Perform the DTC inspection for the SAS control module using the M-MDS.
•  Are the same DTCs present?
Yes
Replace the SAS control module.
(See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
No
DTC troubleshooting completed.
