DTC B296C [POWER RETRACTABLE HARDTOP]

id0902j2032400

DTC B296C

Power retractable hardtop switch malfunction

DETECTION CONDITION

• Power retractable hardtop switch signal is 1 V or less.
• Power retractable hardtop switch is detected to be stuck in on.

POSSIBLE CAUSE

• Open/close signals are input simultaneously for 30 s or more.
• Power retractable hardtop switch malfunction
• Open or short circuit in wiring harness between power retractable hardtop switch and power retractable hardtop control module
• Power retractable hardtop control module malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION

1
INSPECT THE POWER RETRACTABLE HARDTOP SWITCH
• Turn the ignition switch to the LOCK position.
• Disconnect the negative battery cable.
• Inspect the power retractable hardtop switch. (See POWER RETRACTABLE HARDTOP SWITCH INSPECTION.)
• Is the power retractable hardtop switch normal?
Yes
Go to the next step.
No
Replace the power retractable hardtop switch.
2
INSPECT THE WIRING HARNESS BETWEEN POWER RETRACTABLE HARDTOP CONTROL MODULE AND POWER RETRACTABLE HARDTOP SWITCH
• Disconnect the power retractable hardtop switch connector.

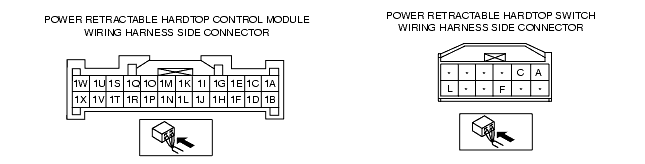

• Inspect the wiring harness between power retractable hardtop control module connector terminal 1H and power retractable hardtop switch connector terminal F for a short to ground.
• Is the wiring harness normal?
Yes
Replace the power retractable hardtop control module.
No
Repair or replace the related wiring harness.
