NO.1 SECURITY LIGHT DISPLAY IS NOT NORMAL

id0903f5800200

1

The security light display is not normal.

DESCRIPTION

• The security light remains illuminated 2 min or more after the ignition switch is turned to the ON position
• The security light does not illuminate when the ignition switch is turned to the ON position.
• The security light remains illuminated while the ignition switch is at the LOCK position.

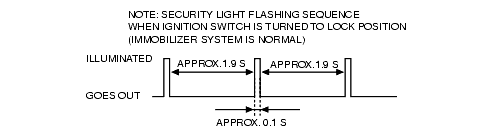

• The security light does not flash or the flashing interval is abnormal while the ignition switch is at the LOCK position.

POSSIBLE CAUSE

• Advanced keyless control module malfunction (with advanced keyless control system)
• Keyless control module malfunction (without advanced keyless control system)
• Instrument cluster malfunction
• Open or short circuit in the wiring harness between the instrument cluster and keyless control module (without advanced keyless control system)/Advanced keyless control module (with advanced keyless control system)
Note
• If the security light remains illuminated for approx. 1 min after the ignition switch is turned to the ON position and then displays a DTC, perform immobilizer system malfunction diagnosis according to that DTC. (See DTC TABLE [IMMOBILIZER SYSTEM (KEYLESS ENTRY SYSTEM)].)
• While performing immobilizer system security access using the M-MDS, the security light does not illuminate even if the ignition switch is turned to the ON position. Verify the illumination condition of the security light by disconnecting the DLC-2 to release security access.

Diagnostic Procedure

STEP

INSPECTION

ACTION

1
• Turn the ignition switch to the ON position.
• Do other warning lights in the instrument cluster illuminate normally?
Yes
Go to the next step.
No
Inspect the instrument cluster.
2
• Turn the ignition switch to the LOCK position.
• Disconnect the negative battery cable.
• Disconnect the instrument cluster connector (24-pin).
• Connect the negative battery cable.
• Does the security light illuminate?
Yes
Replace the instrument cluster.
No
Go to the next step.
3
• Disconnect the negative battery cable.
• Ground instrument cluster terminal 2F using a jumper wire.
• Connect the negative battery cable.
• Does the security light illuminate?
Yes
Go to the next step.
No
Replace the instrument cluster.
4
• Disconnect the negative battery cable.
• Disconnect the instrument cluster connector.
• Connect the keyless control module (without advanced keyless control system)/Advanced keyless control module (with advanced keyless control system) connector.
• Connect the negative battery cable.
• Turn the ignition switch to the ON position.
• Does the security light illuminate?
Yes
Replace the keyless control module (without advanced keyless control system)/Advanced keyless control module (with advanced keyless control system).
No
Repair the wiring harness.
