FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION

id091000800600

1. Disconnect the negative battery cable. (SeeBATTERY REMOVAL/INSTALLATION [L8, LF].)

2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3. Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

4. Remove the fresh air duct. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF].)

5. Remove the horn. (See HORN REMOVAL/INSTALLATION.)

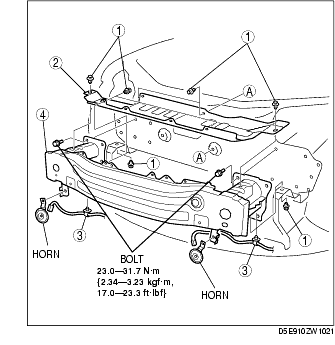

6. Remove in the order indicated in the table.

1
Clip
2
Shroud seal plate
3
Harness clip
4
Front bumper reinforcement

7. Install in the reverse order of removal.
