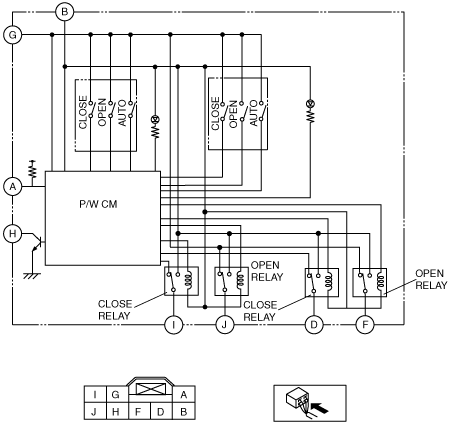

amxuuw00000060
POWER WINDOW MAIN SWITCH INSPECTION [POWER RETRACTABLE HARDTOP]
id0912004190i8
1. Measure the voltage at each terminal (other than terminal A, H and G).
2. Remove the battery cover.
3. Disconnect the negative battery cable.(See BATTERY REMOVAL/INSTALLATION [L8, LF].)
4. Inspect the power window main switch connector for continuity at terminal G.
5. If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window main switch.
|
Terminal |
Signal name |
Connected to |
Measured condition |
Voltage (V)/Continuity |
Inspection item (s) |
|---|---|---|---|---|---|
|
A
|
Communication
|
Power retractable hardtop control module
|
Instant when door glass open operation is completed after RHT switch is pressed
|
1.0 or less (See Reference.)
|
• Power retractable hardtop control module
• Related wiring harnesses
|
|
Other
|
B+
|
||||
|
B
|
IG 1
|
P.WIND 20 A fuse
|
Ignition switch is at ON position
|
B+
|
• Inspect P.WIND 20 A fuse
• Related wiring harnesses
|
|
Ignition switch is at LOCK position
|
1.0 or less
|
||||
|
D
|
Close output
|
Power window motor (RH)
|
While door glass is opening
|
1.0 or less
|
• Power window motor (See POWER WINDOW MOTOR INSPECTION.)
• Related wiring harnesses
|
|
While door glass is closing
|
B+
|
||||
|
F
|
Open output
|
Power window motor (RH)
|
While door glass is opening
|
B+
|
• Power window motor (See POWER WINDOW MOTOR INSPECTION.)
• Related wiring harnesses
|
|
While door glass is closing
|
1.0 or less
|
||||
|
G
|
GND
|
Body ground
|
Under any condition : Inspect for continuity to ground
|
Continuity detected
|
• GND
|
|
H
|
Communication
|
Power retractable hardtop control module
|
While RHT switch is pressed
|
1.0 or less
|
• Power retractable hardtop control module
• Related wiring harnesses
|
|
While RHT switch is not pressed
|
B+
|
||||
|
I
|
Close output
|
Power window motor (LH)
|
While door glass is opening
|
1.0 or less
|
• Power window motor (See POWER WINDOW MOTOR INSPECTION.)
• Related wiring harnesses
|
|
While door glass is closing
|
B+
|
||||
|
J
|
Open output
|
Power window motor (LH)
|
While door glass is opening
|
B+
|
• Power window motor (See POWER WINDOW MOTOR INSPECTION.)
• Related wiring harnesses
|
|
While door glass is closing
|
1.0 or less
|
amxuuw00000060
|
Reference
amxzzw00002556
|
