POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION


id091200420400

1. Remove the battery cover.

2. Disconnect the negative battery cable.(See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3. Remove the handle pull.(See DOOR TRIM DISASSEMBLY/ASSEMBLY.)

4. Remove the armrest.(See DOOR TRIM DISASSEMBLY/ASSEMBLY.)

5. Remove the door trim.(See DOOR TRIM REMOVAL/INSTALLATION.)

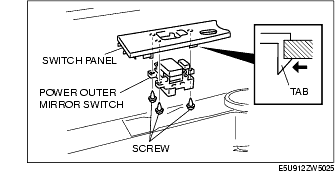

6. Remove the switch panel from the door trim by depressing the tab.

7. Remove the screws and the power outer mirror switch.

8. Install in the reverse order of removal.
