POWER WINDOW REGULATOR REMOVAL/INSTALLATION


id091200812700

1. Remove the battery cover.

2. Disconnect the negative battery cable.(See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3. Remove the door trim.(See DOOR TRIM REMOVAL/INSTALLATION.)

4. Remove the door unit.(See DOOR UNIT REMOVAL/INSTALLATION.)

5. Remove the door glass.(See DOOR GLASS REMOVAL/INSTALLATION.)

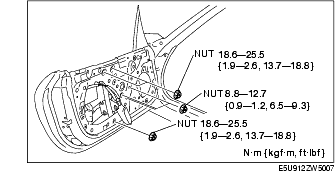

6. Remove the nuts.

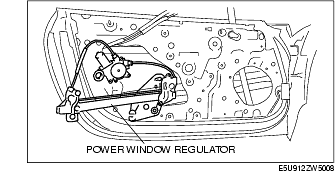

7. Remove the power window regulator.

8. Install in the reverse order of removal.
