DOOR GLASS ADJUSTMENT


id091200813100

1. Fully close the door glass.

2. Remove the door trim.(See DOOR TRIM REMOVAL/INSTALLATION.)

3. Remove the door unit.(See DOOR UNIT REMOVAL/INSTALLATION.)

4. Connect the power window regulator connector.

5. Loosen the glass stopper installation bolts.

6. Loosen the power window regulator and door glass tightening nuts.

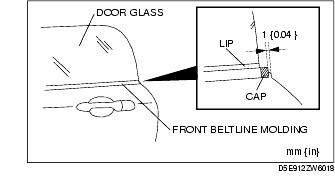

7. Align the door glass with the rear edge of the front beltline molding lip.

Note
• The standard position for the rear edge of the cap is 1 mm from the rear edge of the door panel. If the standard position for the rear edge of the front beltline molding has deviated, align the rear edge of the door glass to the standard position for the rear edge position of the front beltline molding lip.

8. Lightly tighten the power window regulator and door glass tightening nuts.

9. Adjust the clearance between the upper edge of the door glass and the door glass guide.

mm {in}

Clearance

Standard

Minimum

Maximum

a
1.0 {0.04}
0 {0}
1.5 {0.06}

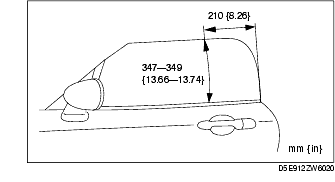

10. Adjust the door glass position.

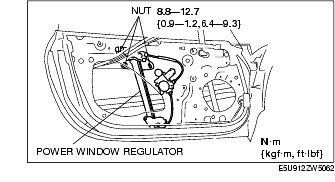

11. Tighten the power window regulator and door glass tightening nuts.

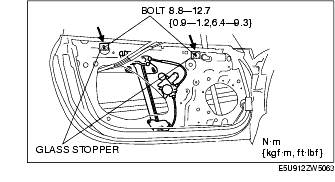

12. Tighten the bolts while pressing the glass stopper in the direction of the arrows.

13. Verify that the door glass opens and closes smoothly.

14. Install the door unit.(See DOOR UNIT REMOVAL/INSTALLATION.)

15. Install the door trim.(See DOOR TRIM REMOVAL/INSTALLATION.)

16. Close the door with the soft top closed and verify that the door glass opens and closes smoothly.
