SEAT DISASSEMBLY/ASSEMBLY

id091300804200

Warning
• Handling the seat (side air bag) improperly can accidentally deploy the side air bag, which may seriously injure you. Read the service warnings and cautions before handling the seat. (See SERVICE WARNINGS.) (See SERVICE CAUTIONS.)

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

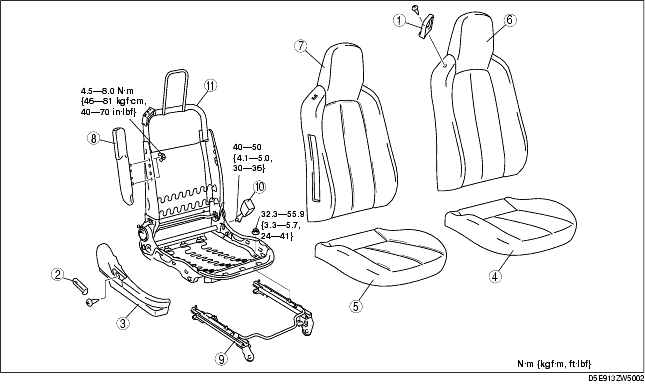

Driver's Seat (Vehicles Without Seat Lifter)

1
Seat belt guide
2
Recliner lever
3
Side cover
4
Seat cushion trim
5
Seat cushion pad
6
Seat back trim
7
Seat back pad
8
Side air bag module
9
Slide adjuster
10
Buckle
11
Seat frame

Driver's Seat (Vehicles With Seat Lifter)

1
Seat belt guide
2
Recliner lever
3
Seat lifter lever
4
Side cover
5
Seat cushion trim
6
Seat cushion pad
7
Seat back trim
8
Seat back pad
9
Side air bag module
10
Slide adjuster
11
Buckle
12
Seat frame

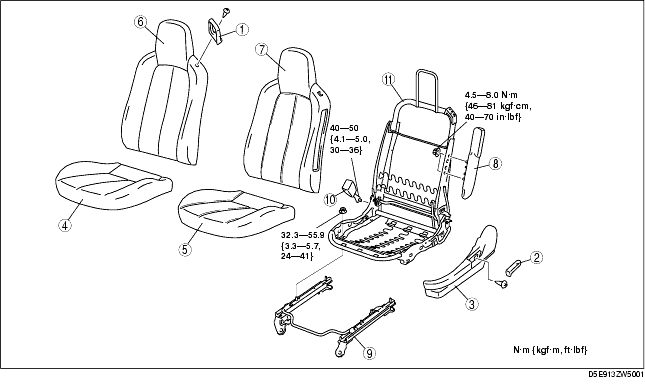

Passenger's Seat

1
Seat belt guide
2
Recliner lever
3
Side cover
4
Seat cushion trim
5
Seat cushion pad
6
Seat back trim
7
Seat back pad
8
Side air bag module
9
Slide adjuster
10
Buckle
11
Seat frame
