DOOR KEY CYLINDER REMOVAL/INSTALLATION

id091400817200

1. Remove the following parts:

(1) Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)
(2) Door unit (See DOOR UNIT REMOVAL/INSTALLATION.)
(3) Outer handle (See OUTER HANDLE REMOVAL/INSTALLATION.)

2. Detach the door key cylinder rod.

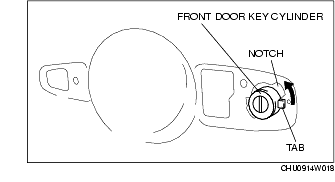

3. Turn the door key cylinder so that the tab is aligned with the notch.

4. Remove the door key cylinder by pulling it out from the front door.

5. Install in the reverse order of removal.
