1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
|
1
|
Top lock lever cover
|
|
2
|
Top lock cover
|
|
3
|
Roof hook wedge
|
|
4
|
Top lock
|
|
5
|
Male wedge cover
|
|
6
|
Male wedge
|
|
7
|
Weatherstrip
|
|
8
|
Retainer
(See Retainer Disassembly Note.)
(See Retainer Assembly Note.)
|
|
9
|
Front roof panel
|

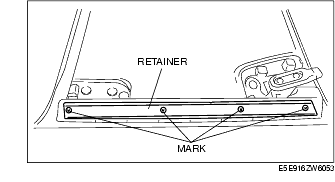

1. Mark around the retainer installation screws with paint before removing them.
1. Install the retainers to the link, aligning the retainer marks with the retainer installation screws.
