DECK PANEL LIMIT SWITCH REMOVAL/INSTALLATION

Caution

• If the deck panel does not operate electrically, see "DECK PANEL MANUAL OPEN/CLOSE PROCEDURE" to open/close the deck panel.(See DECK PANEL MANUAL OPEN/CLOSE PROCEDURE.)

1. Fully open the deck panel.

2. Remove the battery cover.

3. Disconnect the negative battery cable.(See BATTERY REMOVAL/INSTALLATION [L8, LF].)

4. Set the side shelf out of the way.(See SIDE SHELF REMOVAL/INSTALLATION.)

5. Remove the deck panel.(See DECK PANEL REMOVAL/INSTALLATION.)

6. Remove the deck panel motor. (RH) (See DECK PANEL MOTOR REMOVAL/INSTALLATION.)

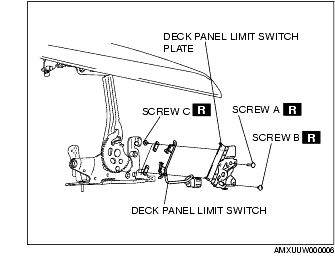

7. Remove the screws A and B.

8. Remove the deck panel limit switch prate.

9. Remove the screws C.

10. Remove the deck panel limit switch.

11. Install in the reverse order of removal.
