DASHBOARD DISASSEMBLY/ASSEMBLY

1. Remove the following parts:

(1) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(2) Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.)

(3) Center speaker cover (See CENTER SPEAKER REMOVAL/INSTALLATION.)

(4) Center speaker (vehicles with BOSE) (See CENTER SPEAKER REMOVAL/INSTALLATION.)

(5) Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

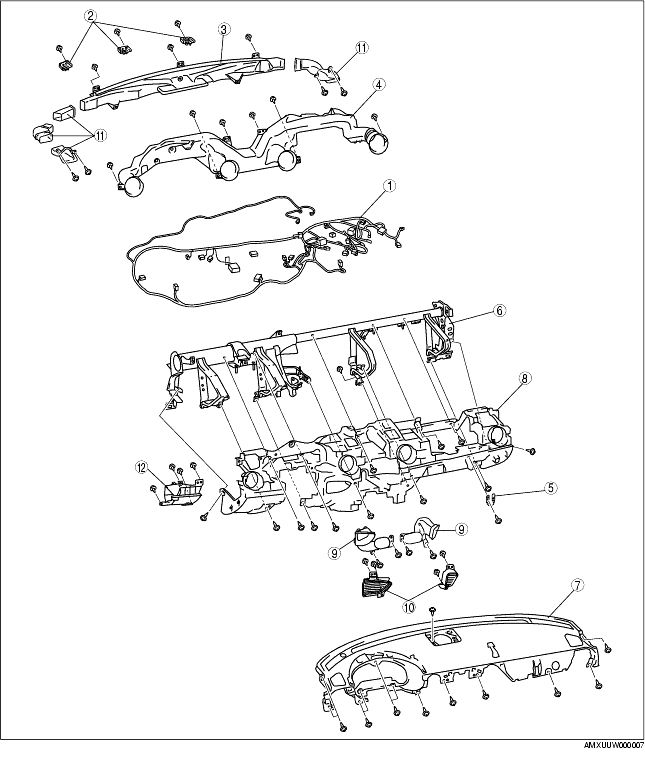

2. Disassemble in the order indicated in the table.

3. Assemble in the reverse order of disassembly.
