CENTER SPEAKER REMOVAL/INSTALLATION

id092000806000

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3. Remove in the order indicated in the table.

1
Center speaker cover
2
Screw
3
Center speaker
4
Connector

4. Install in the reverse order of removal.

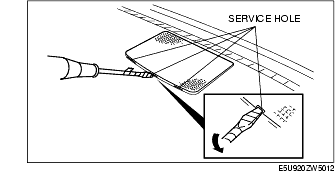

Center Speaker Cover Removal Note

1. Insert a tape-wrapped flathead screwdriver into the service hole.

2. Pry with the screwdriver in the direction shown by the arrow to remove the center speaker cover.
