B-PILLAR UPPER TRIM REMOVAL [DETACHABLE HARDTOP]

1. Remove the detachable hardtop.

2. Remove the B-pillar garnish. (See DETACHABLE HARDTOP DISASSEMBLY/ASSEMBLY.)

3. Remove the side lock. (See DETACHABLE HARDTOP DISASSEMBLY/ASSEMBLY.)

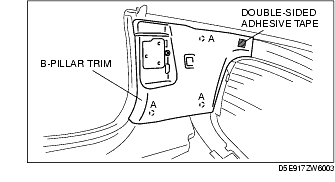

4. Disengage the B-pillar upper trim clips A using a fastener remover.

5. While cutting the double-sided adhesive tape using a screwdriver or a razor, separate the B-pillar upper trim from the body.

Warning

• Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

6. Remove the B-pillar upper trim.
