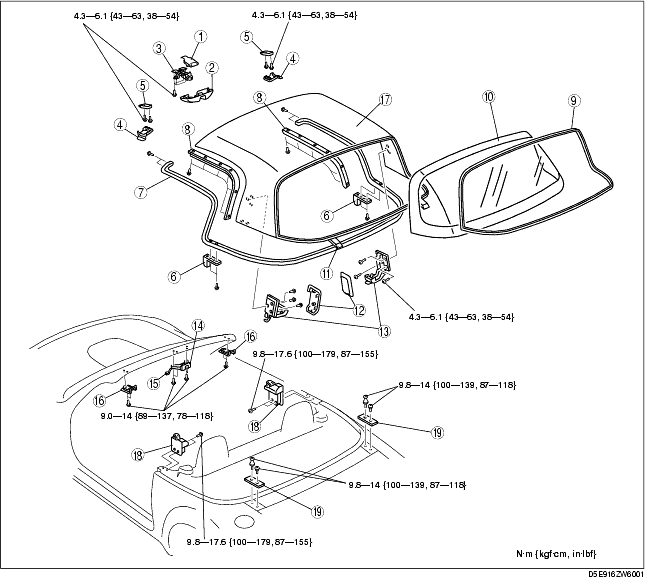

1. Disassemble in the order indicated in the table.
2. To remove the striker, remove the following parts:
3. Assemble in the reverse order of disassembly.
|
1
|
Top lock lever cover
|
|
2
|
Top lock cover
|
|
3
|
Top lock
|
|
4
|
male wedge cover
|
|
5
|
male wedge
|
|
6
|
Weatherstrip No.2
|
|
7
|
Weatherstrip No.1
|
|
8
|
Retainer
(See Retainer Disassembly Note.)
(See Retainer Assembly Note.)
|
|
9
|
Rear window molding
|
|
10
|
Rear window glass
|
|
11
|
Rear deck lock
|
|
12
|
B-pillar garnish
|
|
13
|
Side lock
|
|
14
|
Striker
|
|
15
|
Connector
|
|
16
|
Female wedge
|
|
17
|
Detachable hardtop
|
|
18
|
side striker
|
|
19
|
Rear deck plate
|

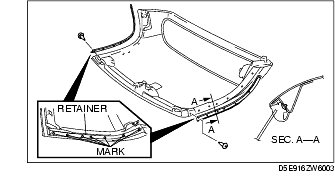

1. Mark around the retainer installation screws with paint before removing them.
1. Install the retainers to the link, aligning the retainer marks with the retainer installation screws.
