REAR COMBINATION LIGHT REMOVAL/INSTALLATION

id091800465500

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)

4. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

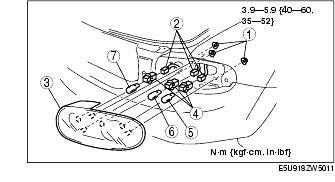

5. Remove in the order indicated in the table.


1	Nut
2	Connector
3	Rear combination light
4	Socket
5	Brake light/taillight bulb
6	Rear turn light bulb
7	Back-up light bulb (passenger-side only) Rear fog light bulb (driver-side only) (with rear fog light)

6. Install in the reverse order of removal.
