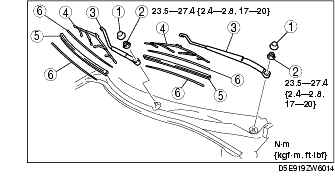

1. Remove in the order indicated in the table.
|
1
|
Cap
|
|
2
|
Nut
|
|
3
|
Wiper arm
(See Wiper Arm Installation Note.)
|
|
4
|
Wiper blade
|
|
5
|
Rubber brush
|
|
6
|
Backing plate
|
2. Install in the reverse order of removal.
3. Adjust the windshield wiper arm and blade. (See WIPER ARM AND BLADE ADJUSTMENT.)
1. Clean the wiper arm connector shafts using a wire brush before installing the wiper arms.
