CENTER PANEL UNIT DISASSEMBLY/ASSEMBLY


id092000800700

Caution
• Before disassembling the center panel unit, spread a cloth on the floor to put the disassembled parts on. This protects the surface of the panel from scratches or dirt.

1. Disassemble in the order indicated in the table.

1
Screw A
2
Audio unit
3
Cover
4
Screw B
5
Climate control unit
6
Center panel

2. Assemble in the reverse order of disassembly.

Screw A Assemble Note

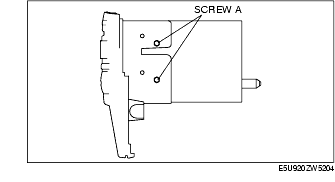

1. Tighten screws A at the position shown in the figure.
