INSTRUMENT CLUSTER INPUT/OUTPUT CHECK MODE

id092200801700

Note
• In this mode, it is possible to verify the items in the following chart.

Check Code Table

Check code

Check item

Related items

01
Buckle switch (driver-side)
Seat belt warning alarm
04
Door switch
• Lights-on reminder warning alarm
• Key reminder warning alarm
08
TNS relay
• Lights-on reminder warning alarm
• Each illumination light
12
Speedometer
Speedometer
13
Tachometer
Tachometer
14
Buzzer
Buzzer
16
Fuel-level warning light
Fuel-level warning light
18
Ignition key illumination
Ignition key illumination
22
Fuel gauge sender unit
Fuel gauge
23
Fuel gauge
Fuel gauge
25
Water temperature gauge
Water temperature gauge
26
• Odometer/tripmeter (LCD)
• Warning and indicator light
• Odometer/tripmeter (LCD)
• Warning and indicator light
28
Oil pressure gauge
Oil pressure gauge
31
Key reminder switch
Key reminder warning alarm
57
Panel light control
Illumination light bulb
58
• Buckle switch (passenger-side)
• Occupancy sensor
Seat belt warning alarm
59
• CAN system
• Fuel gauge sender unit
• CAN system
• Fuel system

Note
• Check codes which are not listed may be indicated, but they cannot be inspected.
• The check codes are displayed in numerical order. (While performing the inspection, if you want to inspect a check code with a number smaller than the code number you are currently inspecting, terminate the check mode then repeat the inspection from the beginning.)
• If a speed signal is input to the instrument cluster (the wheels are rotated), the input/output check mode will be cancelled.
• The check codes can be fast-forwarded by pushing and holding the odometer/tripmeter switch for 1 s or more.

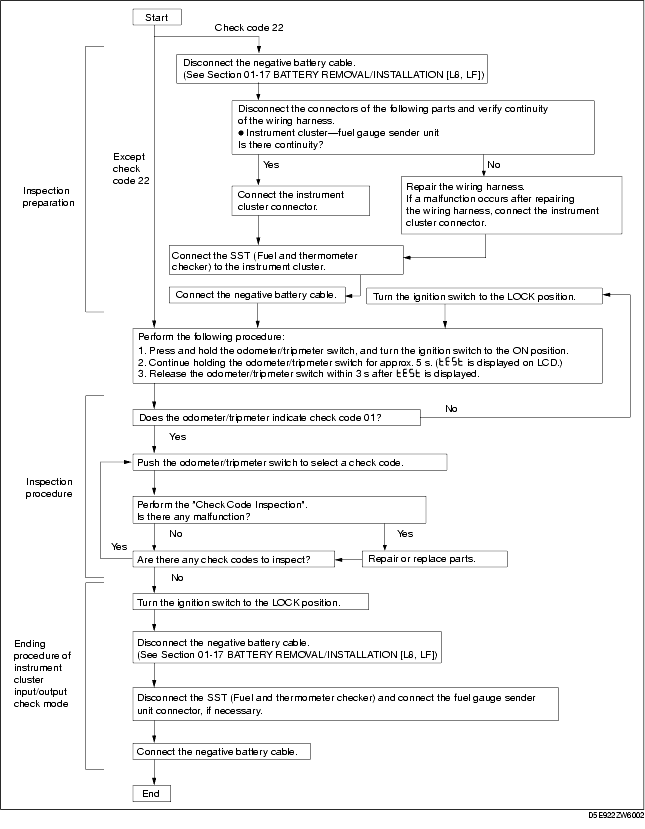

Checking Order

Note
• When inspecting more than two check codes, begin with the code with the highest ranking.

Priority order of inspection

Ignition switch position

Check code

1
ON
22
2
01, 04, 08, 12, 13, 14, 16, 18, 23, 25, 26, 28, 57, 58, 59
3
LOCK
31

Check Code Inspection

Check code 01

Check code 01

Buckle switch (driver-side)

STEP

INSPECTION CONDITION

DISPLAY

ACTION

1
Unfasten driver-side seat belt. (Buckle switch ON)

Go to the next step.

Verify that the voltage of instrument cluster terminal 2A is 1.0 V or less.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
- Buckle switch (driver-side)
- Wiring harness (Buckle switch (driver-side)-instrument cluster)
2
Fasten driver-side seat belt. (Buckle switch OFF)

Verify that the voltage of instrument cluster terminal 2A is B+.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
- Buckle switch (driver-side)
- Wiring harness (Buckle switch (driver-side)-instrument cluster)

Input signal to the instrument cluster is normal.

Check code 04

Check code 04

Door switch ON/OFF signal

STEP

INSPECTION CONDITION

DISPLAY

ACTION

1
Open the driver-side door. (The door switch is on.)

Close the driver-side door, then go to the next step.

Verify that the voltage of instrument cluster terminal 2E is 1.0 V or less.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
- Door switch
- Wiring harness (Instrument cluster-door switches)
2
Close all doors. (Door switches are off.)

Verify that the voltage of instrument cluster terminal 2E is B+.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
- Door switch
- Wiring harness (Instrument cluster-door switches)

Input signal to the instrument cluster is normal.

Check code 08

Check code 08

TNS relay ON/OFF signal

STEP

INSPECTION CONDITION

DISPLAY

ACTION

1
Turn the headlight switch to the TNS position. (TNS relay ON)

Go to the next step.

Verify that the voltage of instrument cluster terminal 1B is B+.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
- TNS relay
- Wiring harness (Battery-TNS relay-instrument cluster)
2
Turn the headlight switch off. (TNS relay OFF)

Verify that the voltage of the instrument cluster terminal 1B is 1.0 V or less.
•  If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
- TNS relay
- Wiring harness (TNS relay-instrument cluster)

Input signal to the instrument cluster is normal.

Check code 12

Check code 12

Speedometer display signal

INSPECTION CONDITION

DISPLAY

ACTION

After selecting check code 12, wait for approx. 2 s.

The speedometer needle moves full scale then returns to approx. 60 km/h or approx. 60mph.
The speedometer is normal.
Except above
Replace the instrument cluster.

-

Check code 13

Check code 13

Tachometer operation signal

INSPECTION CONDITION

DISPLAY

ACTION

After selecting check code 13, wait for approx. 2 s.

The tachometer needle moves full scale then returns to approx. 3,000 rpm.
The tachometer is normal.
Except above
Replace the instrument cluster.

-

Check code 14

Check code 14

Buzzer operation signal

INSPECTION CONDITION

DISPLAY

ACTION

After selecting check code 14, wait approx. 2 s.

The buzzer sounds.
The buzzer is normal.
The buzzer does not sound.
Replace the instrument cluster.

Check code 16

Check code 16

Fuel-level warning light flashing signal

INSPECTION CONDITION

DISPLAY

ACTION

After selecting check code 16, wait approx. 2 s.

Fuel-level warning light flashes three times.
The fuel-level warning light is normal.
Except above
Replace the instrument cluster.

Check code 18

Check code 18

Ignition key illumination control signal

INSPECTION CONDITION

DISPLAY

ACTION

After selecting check code 18, wait approx. 2 s.

Ignition key illumination flashes three times.
The ignition key illumination is normal.
Except above
Verify that the voltage of instrument cluster terminal 1K is B+.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
- Ignition key illumination bulb
- Wiring harness (Battery-ignition key illumination-instrument cluster)

Check code 22

Check code 22

Fuel level signal

STEP

INSPECTION CONDITION

DISPLAY

ACTION

1
Select check code 22 with the fuel gauge sender unit connector disconnected.

Go to the next step.
Except above
Go to the Step 6.
2
Connect terminals 2R and 2T of the instrument cluster.

Go to the next step.
Except above
Go to the Step 6.
3
Using the SST (Fuel and thermometer checker) or resistor, input 20 ohms between instrument cluster terminals 2R and 2T.

Go to the next step.
Except above
Go to the Step 6.
4
Using the SST (Fuel and thermometer checker) or resistor, input 60 ohms between instrument cluster terminals 2R and 2T.

Go to the next step.
Except above
Go to the Step 6.
5
Using the SST (Fuel and thermometer checker) or resistor, input 100 ohms between instrument cluster terminals 2R and 2T.

Inspect the fuel gauge sender unit.
Except above
Go to the next step.
6
Inspect the wiring harness and connector between instrument cluster and fuel gauge sender unit.
• If there is any malfunction, repair or replace the wiring harness or connector.
• If there is no malfunction, replace the instrument cluster.

Check code 23

Check code 23

Fuel gauge operation signal

INSPECTION CONDITION

DISPLAY

ACTION

After selecting check code 23, wait approx. 2 s.

The fuel gauge indicates status in the following order approx. every 2 s.
• F → 1/2 → E → F (fixed)
The fuel gauge is normal.
Except above
Replace the instrument cluster.

Replace the instrument cluster.

Check code 25

Check code 25

Water temperature gauge operation signal

INSPECTION CONDITION

DISPLAY

ACTION

After selecting check code 25, wait approx. 2 s.

The water temperature gauge indicates status in the following order approx. every 2 s.
• H → Center → C → H (fixed)
The water temperature gauge is normal.
Except above
Replace the instrument cluster.

Replace the instrument cluster.

Check code 26

Check code 26

Odometer/tripmeter display signal

INSPECTION CONDITION

DISPLAY

ACTION

Select check code 26.

• Display is normal.
• Warning and indicator light illuminated.
- Generator warning light
- AT warning light
- DSC indicator light
- DSC OFF light
- ABS warning light
- Brake system warning light
- Selector indicator light
- MIL
- Cruise set indicator light
- Cruise main indicator light
- Security light
- Keyless warning light
- Keyless indicator light
• The odometer/tripmeter is normal.
• Warning and indicator is normal.
Except above
Replace the instrument cluster.

Check code 28

Check code 28

Oil pressure gauge operation signal

INSPECTION CONDITION

DISPLAY

ACTION

After selecting check code 28, wait approx. 2 s.

The oil pressure gauge indicates status in the following order approx. every 2 s.
• H → Center → L → H (fixed)
The oil pressure gauge is normal.
Except above
Replace the instrument cluster.

Replace the instrument cluster.

Check code 31

Key reminder switch ON/OFF signal

STEP

INSPECTION CONDITION

DISPLAY

ACTION

1
Remove the key from the steering lock, then reinsert the key into the steering lock after selecting check code 31. (The key reminder switch is on.)

Go to the next step.

Verify that the voltage of instrument cluster terminal 2C is B+.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
- Key reminder switch
- Wiring harness (Battery-key reminder switch-instrument cluster)
2
Remove the key from the steering lock. (The key reminder switch is off.)

Verify that the voltage of instrument cluster terminal 2C is 1.0 V or less.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
- Key reminder switch
- Wiring harness (Key reminder switch-instrument cluster)

Input signal to the instrument cluster is normal.

Check code 57

Check code 57

Panel light control signal

INSPECTION CONDITION

DISPLAY

ACTION

Turn the headlight switch to the TNS position.
After selecting check code 57, wait approx. 2 s.

Illumination light (hazard warning switch, center panel module, etc.) flashes three times.
The panel light control signal is normal.
Except above
Verify that the voltage of instrument cluster terminal 1F is B+.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
- Illumination light (hazard warning switch, center panel module, etc.)
- Wiring harness (Instrument cluster-illumination lights-TNS relay)

Check code 58

Check code 58

Buckle switch (passenger-side) and occupancy sensor

STEP

INSPECTION CONDITION

DISPLAY

ACTION

1
Seat one person in the passenger's seat, and unfasten passenger-side seat belt. (Occupancy sensor and buckle switch ON)

Go to the next step.

Verify that the voltage of instrument cluster terminal 2H is 1.0 V or less.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
- Buckle switch
- Occupancy sensor
- Wiring harness (Instrument cluster-occupancy sensor-buckle switch)
2
Seat one person in the passenger's seat, and fasten passenger-side seat belt. (Occupancy sensor ON and buckle switch OFF)
Seat no person in the passenger's seat, and unfasten passenger-side seat belt. (Occupancy sensor OFF and buckle switch ON)
Seat no person in the passenger's seat, and fasten passenger-side seat belt. (Occupancy sensor and buckle switch OFF)

Verify that the voltage of instrument cluster terminal 2H is B+.
• If the voltage is as specified, replace the instrument cluster.
• If the voltage is not as specified, inspect the following parts:
- Buckle switch
- Occupancy sensor
- Wiring harness (Instrument cluster-occupancy sensor-buckle switch)

Input signal to the instrument cluster is normal.

Check code 59

Diagnostic procedure

Check code 59

CAN system/fuel system

STEP

INSPECTION

INDICATION

ACTION

1
The three digits number is indicated after selecting check code 59. Confirm the first digit from the right.

The CAN system is normal.
Go to next step.

The DTC of CAN system is detected.
Perform the DTC inspection. (See DTC TABLE [MULTIPLEX COMMUNICATION SYSTEM])
• If the CAN system is normal, replace the instrument cluster.
Go to next step.
2
Confirm the second digit from the right.

The wiring harnesses between the fuel gauge sender unit and instrument cluster are normal.
Go to next step.

Inspect following parts.
• Fuel gauge sender unit
• Wiring harness (Fuel gauge sender unit-instrument cluster)
- If fuel gauge sender unit and wiring harness are normal, replace the instrument cluster.
Go to next step.
3
Confirm the third digit from the right.

The fuel pulse signal from the PCM is normal.

Inspect the PCM.
• If the PCM is normal, replace the instrument cluster.
