GENERATOR REMOVAL/INSTALLATION [L8, LF]

id0117a6800200

Warning

•  Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.

•  When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.

Caution

•  The generator can be damaged by the heat from the exhaust manifold. Make sure the generator duct is installed securely.

1.  Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

2.  Remove the drive belt. (See DRIVE BELT REPLACEMENT [L8, LF].)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

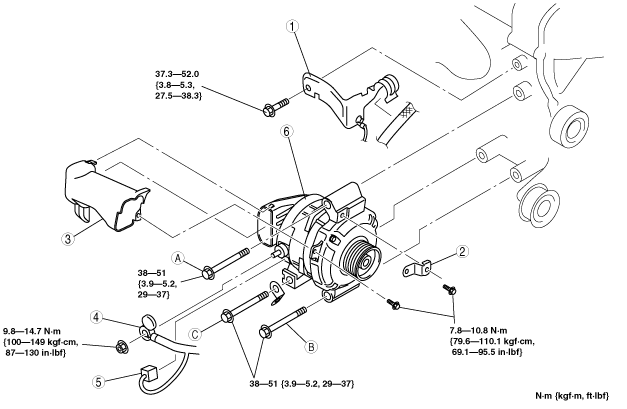

e5u117zw5003

1	P/S pressure hose bracket
2	Generator bracket
3	Generator duct
4	Terminal B cable
5	Generator connector
6	Generator (See Generator Installation Note.)

Generator Installation Note

1.  Tighten bolt A temporarily.

2.  Tighten bolt B, C to the specified tightening torque.

3.  Tighten bolt A to the specified tightening torque.
