HEATED OXYGEN SENSOR (HO2S) INSPECTION [L8, LF]

id0140i7802300

HO2S Voltage Inspection

1.  Warm up the engine to normal operating temperature.

2.  Using the M-MDS, monitor the following:

―  Vehicle speed (PID: VSS)

―  Engine speed (PID: RPM)

―  HO2S voltage (PID: O2S12)

3.  Drive the vehicle and decelerate the engine speed by releasing the accelerator pedal fully when the engine speed is 3,000 rpm or more.

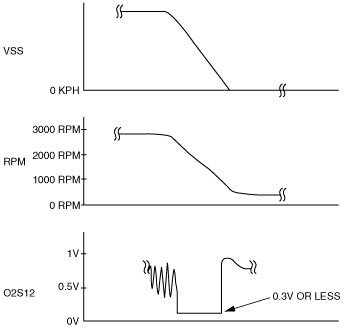

4.  Verify that the HO2S outputs a voltage of 0.6 V or more, one time or more, then verify that the HO2S voltage (PID: O2S12) is 0.3 V or less while decelerating as shown in the figure.

e5u140zw4863

•  If not within the specification, replace the HO2S. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [L8, LF].)

HO2S Heater Resistance Inspection

1.  Disconnect the HO2S connector.

2.  Measure the HO2S resistance between terminals C and D.

amxzzw00000046

•  If not within the specification, replace the HO2S. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [L8, LF].)
