DTC P0717 [SJ6A-EL]


id050208801500

DTC P0717

Turbine sensor circuit malfunction (open circuit/short circuit)

DETECTION CONDITION
•  When all conditions below are satisfied.
―  D range of TR switch input
―  Vehicle speed signal 12 pulse input
―  Turbine sensor signal not input
Diagnostic support note:
•  The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
•  The AT warning light illuminates if the TCM detects the above malfunction condition during the first drive cycle.
•  PENDING CODE is not available.
•  FREEZE FRAME DATA is available.
•  The DTC is stored in the TCM memory.
POSSIBLE CAUSE
•  TCM connector or terminal malfunction
•  Short to GND in wiring harness between turbine sensor terminal B and TCM terminal 2A
•  Short to GND in wiring harness between turbine sensor terminal A and TCM terminal 2B
•  Short to power supply in wiring harness between turbine sensor terminal B and TCM terminal 2A
•  Short to power supply in wiring harness between turbine sensor terminal A and TCM terminal 2B
•  Turbine sensor connector or terminal malfunction
•  Turbine sensor malfunction
•  Open circuit between turbine sensor terminal B and TCM terminal 2A
•  Open circuit between turbine sensor terminal A and TCM terminal 2B
•  TCM malfunction

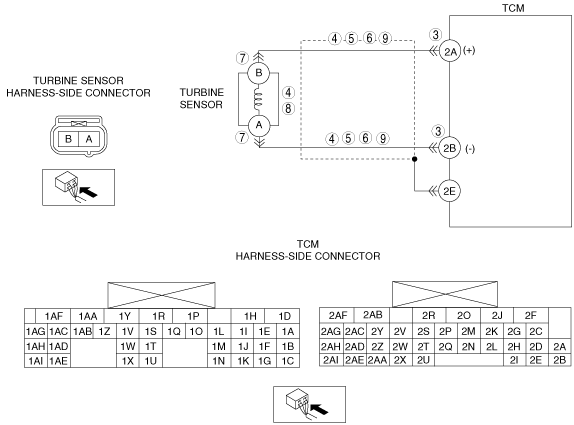

Diagnostic procedure

STEP

INSPECTION

ACTION

1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
•  Has the FREEZE FRAME DATA been recorded on the repair order?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
•  Verify related service repair information availability.
•  Is any related repair information available?
Yes
Perform repair or diagnosis according to the available repair information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT TCM CONNECTOR FOR POOR CONNECTION
•  Turn the ignition switch to the LOCK position.
•  Disconnect the TCM connector.
•  Inspect for poor connection at TCM terminals R18 and R7 (such as damaged/pulled-out pins, corrosion).
•  Are terminals normal?
Yes
Go to the next step.
No
Repair or replace the connector and/or terminal, then go to Step 13.
4
INSPECT CONTINUITY OF TURBINE SENSOR CIRCUIT
•  Inspect for continuity between the TCM terminals 2A and 2B (wiring harness-side).
•  Is there continuity?
Yes
Go to the next step.
No
Go to Step 7.
5
INSPECT TURBINE SENSOR SIGNAL CIRCUIT FOR SHORT TO GND
•  Inspect for continuity between the TCM terminals (wiring harness-side) and body GND.
―  Terminal 2A and body GND
―  Terminal 2B and body GND
•  Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for short to GND, then go to Step 10.
6
INSPECT TURBINE SENSOR CIRCUIT FOR SHORT TO POWER SUPPLY
•  Turn the ignition switch to the ON position (engine off).
•  Measure the voltage at TCM (wiring harness-side) terminals 2A and 2B.
•  Is there 0 V at the TCM wiring harness-side connector terminals?
Yes
Go to the next step.
No
Repair or replace the wiring harness for short to power supply, then go to Step 10.
7
INSPECT TERMINAL TURBINE SENSOR FOR POOR CONNECTION
•  Turn the ignition switch to the LOCK position.
•  Disconnect the turbine sensor connector.
•  Inspect for poor connection at turbine sensor terminals A and B (such as damaged/pulled-out pins, corrosion).
•  Are terminals normal?
Yes
Go to the next step.
No
Repair or replace the connector and/or terminal, then go to Step 10.
8
INSPECT TURBINE SENSOR
•  Inspect the turbine sensor.
•  Is the turbine sensor normal?
Yes
Go to the next step.
No
Replace the turbine sensor, then go to Step 10.
9
INSPECT TURBINE SENSOR CIRCUIT FOR OPEN CIRCUIT
•  Inspect for continuity between turbine sensor terminals (wiring harness-side) and TCM terminals (wiring harness-side).
―  Terminal B and terminal 2A
―  Terminal A and terminal 2B
•  Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for open circuit, then go to the next step.
10
VERIFY TROUBLESHOOTING OF DTC P0717 COMPLETED
•  Make sure to reconnect all the disconnected connectors.
•  Clear the DTC using the M-MDS.
•  Perform the following procedure to ensure that the DTC has been resolved:
1.  Start the engine.
2.  Warm-up the engine and transmission.
3.  Drive the vehicle in D range and make sure that the gears shift smoothly from 1GR to 6GR.
•  Is the same DTC present?
Yes
Replace the TCM, then go to the next step.
No
Go to the next step.
11
VERIFY NO DTC HAS BEEN PRESENTED
•  Perform the “Reading DTCs Procedure”.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
No
DTC troubleshooting completed.
