CLUTCH UNIT REMOVAL/INSTALLATION

id051000800300

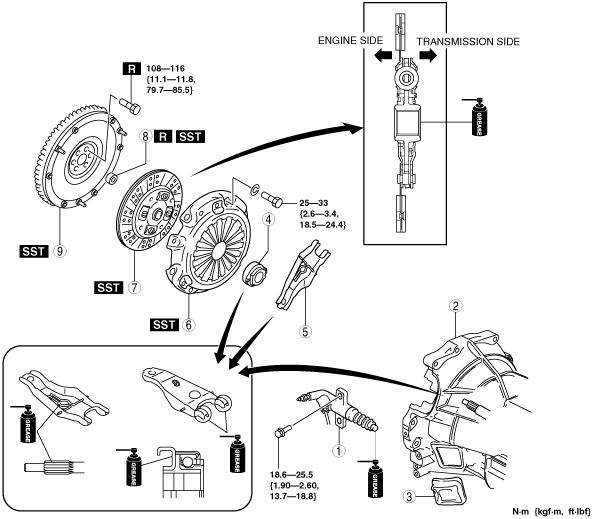

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

amxzzw00000451

1
Clutch release cylinder
(See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION.)
2
Manual transaxle
(See TRANSMISSION REMOVAL/INSTALLATION [M15M-D].)
(See TRANSMISSION REMOVAL/INSTALLATION [P66M-D].)
3
Boot
4
Clutch release collar
(See CLUTCH RELEASE COLLAR INSPECTION.)
5
Clutch release fork
6
Clutch cover
(See Clutch Cover and Disc Removal Note.)
(See Clutch Cover Installation Note.)
7
Clutch disc
(See Clutch Cover and Disc Removal Note.)
(See Clutch Disc Installation Note.)
8
Pilot bearing
(See Pilot Bearing Removal Note.)
(See Pilot Bearing Installation Note.)
9
Flywheel
(See Flywheel Removal Note.)
(See Flywheel Installation Note.)


Clutch Cover and Disc Removal Note

1.  Install the SSTs.

2.  Loosen each bolt one turn at a time in a crisscross pattern until spring tension is released.

3.  Remove the clutch cover and disc.

amxzzw00000452


Pilot Bearing Removal Note

Note
•  The pilot bearing does not need to be removed unless you are replacing it.

1.  Use the SST to remove the pilot bearing.

amxzzw00000453


Pilot Bearing Installation Note

1.  Install the pilot bearing using the corresponding 20 mm {0.79 in} side of a Snap-on brand millimeter size bushing driver set A160M adapter A160M7 (20—22 mm {0.79—0.86 in}).

amxzzw00000454

Substitution
•  A160M7 (20 mm {0.79 in})
Outer diameter: 21 mm {0.83 in}
Inner diameter: 19 mm {0.75 in}
amxzzw00000455


Flywheel Removal Note

1.  Hold the flywheel using the SST.

2.  Remove the bolts evenly and gradually in a crisscross pattern.

3.  Remove the flywheel.

amxzzw00000456

4.  Inspect for oil leakage from the crankshaft rear oil seal.

•  If there is any malfunction, replace the crankshaft rear oil seal.
(See REAR OIL SEAL REPLACEMENT [L8, LF].)


Flywheel Installation Note

1.  Clean the crankshaft thread holes.

2.  Install the flywheel to the crankshaft.

3.  Hand‐tighten the flywheel lock bolts.

4.  Install the SST to the flywheel.

amxzzw00000457

5.  Gradually tighten the flywheel lock bolts in a crisscross pattern.

Tightening torque
108—116 N·m
{11.1—11.8 kgf·m, 79.7—85.5 ft·lbf}

Clutch Disc Installation Note

1.  Hold the clutch disc position using the SST.

amxzzw00000458


Clutch Cover Installation Note

1.  Install the SSTs.

2.  Tighten the bolts evenly and gradually in a crisscross pattern.

amxzzw00000459

Tightening torque
25.0—33.0 N·m
{2.6—3.4 kgf·m, 18.5—24.4 ft·lbf}
