TWEETER/DOOR UPPER SPEAKER REMOVAL/INSTALLATION

id092000810900

1.  Remove the battery cover.

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3.  Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

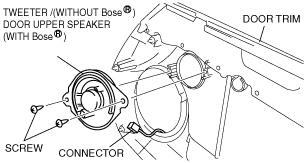

amxzzw00002361

5.  Remove the screws.

6.  Remove the tweeter (without Bose^®)/door upper speaker (with Bose^®).

7.  Install in the reverse order of removal.
