DTC U0323:00 [PCM (SKYACTIV-G 1.5, SKYACTIV-G 2.0)]

id0102i6901400

DTC U0323:00

Instrument cluster error
DETECTION CONDITION
•  When any of the following conditions is met:
―  CAN communication line malfunction between instrument cluster and PCM
―  Instrument cluster internal malfunction
Diagnostic support note
•  This is a continuous monitor (other).
•  The check engine light does not illuminate.
•  FREEZE FRAME DATA is not available.
•  Snapshot data is available.
•  DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION
•  Not applicable
POSSIBLE CAUSE
•  CAN drive error (instrument cluster or PCM)

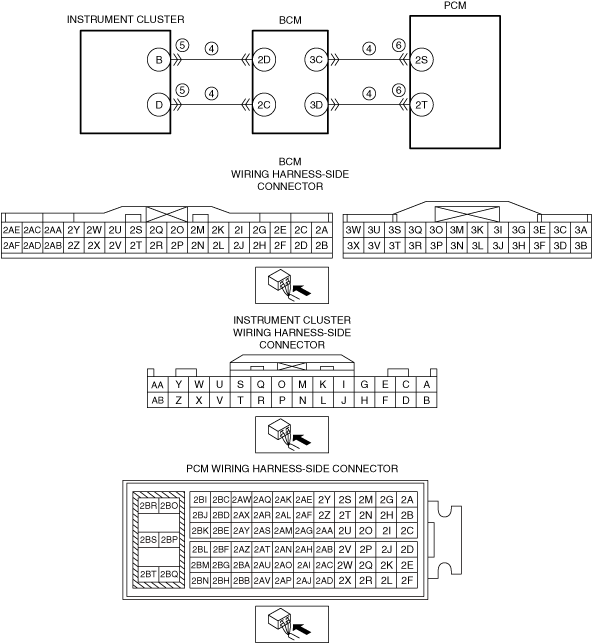

•  CAN communication line malfunction between instrument cluster and PCM
―  Instrument cluster terminal B—BCM terminal 2D
―  Instrument cluster terminal D—BCM terminal 2C
―  BCM terminal 3C—PCM terminal 2S
―  BCM terminal 3D—PCM terminal 2T
•  Instrument cluster connector or terminals malfunction
•  PCM connector or terminals malfunction
•  Instrument cluster malfunction
•  PCM malfunction

Diagnostic Procedure

STEP

INSPECTION

RESULTS

ACTION
1
RECORD VEHICLE STATUS AT TIME OF DTC DETECTION TO UTILIZE WITH REPEATABILITY VERIFICATION
Note
•  Recording can be facilitated using the screen capture function of the PC.
•  Record the snapshot data on the repair order.
—
Go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
VERIFY DTC FOR MODULE COMMUNICATION
•  Switch the ignition off, then ON (engine off).
•  Perform the Pending Trouble Code Access Procedure and DTC Reading Procedure.
•  Are any other PENDING CODEs and/or DTCs present?
Yes
Go to the applicable PENDING CODE or DTC inspection.
(See DTC TABLE [PCM (SKYACTIV-G 1.5, SKYACTIV-G 2.0)].)
No
Go to the next step.
4
VERIFY INSTRUMENT CLUSTER DTC
•  Perform the instrument cluster DTC inspection using the M-MDS.
•  Are any DTCs present?
Yes
DTC U0100:00 is displayed:
•  CAN communication line can be considered the cause.
―  Repair or replace the wiring harness between PCM and instrument cluster, then go to Step 7.
DTC other than U0100:00 is displayed:
•  Go to the applicable DTC inspection.
No
Go to the next step.
5
INSPECT INSTRUMENT CLUSTER CONNECTOR CONDITION
•  Switch the ignition off.
•  Disconnect the instrument cluster connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the connector and/or terminals, then go to Step 7.
No
Go to the next step.
6
INSPECT PCM CONNECTOR CONDITION
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the connector and/or terminals, then go to the next step.
No
Go to the next step.
7
VERIFY DTC TROUBLESHOOTING COMPLETED
•  Always reconnect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Perform the KOEO or KOER self test.
•  Is the same Pending DTC present?
Yes
Repeat the inspection from Step 1.
•  If the malfunction recurs, replace the PCM.
Go to the next step.
No
Go to the next step.
8
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “AFTER REPAIR PROCEDURE”.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [PCM (SKYACTIV-G 1.5, SKYACTIV-G 2.0)].)
No
DTC troubleshooting completed.
