COOLING SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0]


id0112i1002800


Outline

•  The radiator has been scaled down and installed upright to achieve a short overhang.
•  The following have been adopted to improve cooling efficiency.
―  Air seal cowl to guide efficient cool air flow to the radiator
―  Flaps to increase cooling efficiency from medium to high speed range
―  Engine coolant passage in cylinder block and cylinder head has been changed
―  Improved shape of engine coolant passage to reduce engine coolant passage resistance
―  Shroud impeller is adopted to water pump impeller to improve pump efficiency
•  Piping layout of hoses has been optimized to achieve weight reduction.

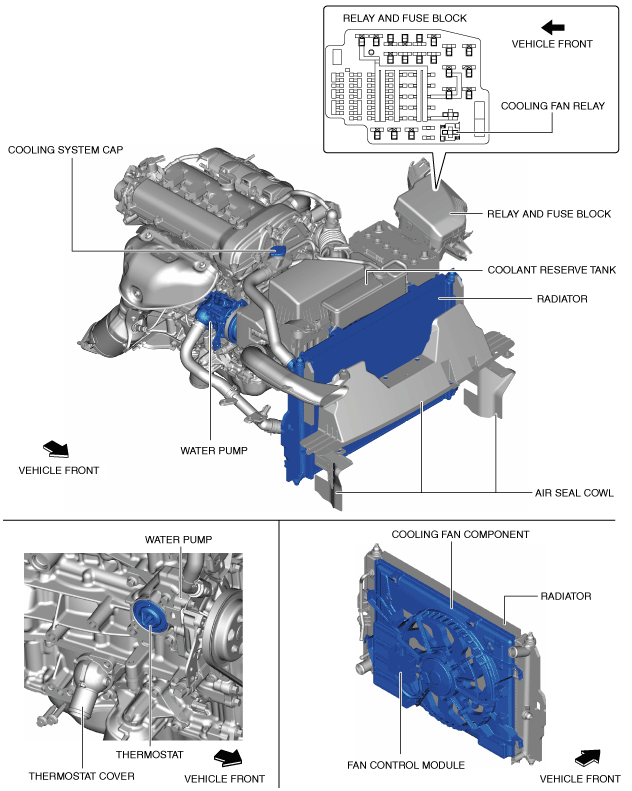

Structural View

amxuun00001075

Hose Routing Diagram

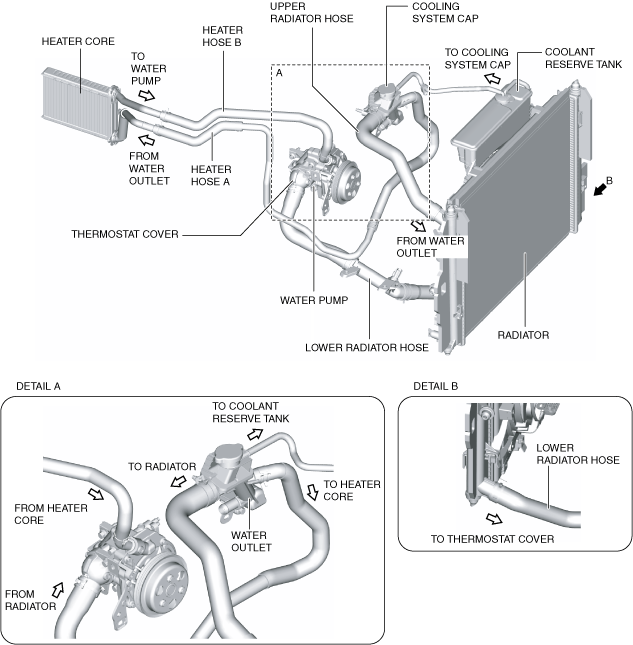

L.H.D. (Except SKYACTIV-G 2.0 (MT))

amxzzn00001923

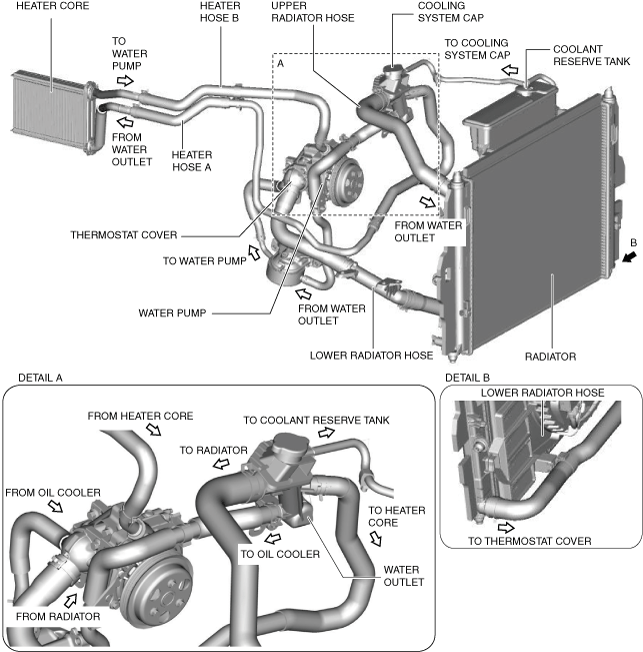

L.H.D. (SKYACTIV-G 2.0 (MT))

atrizt00000115

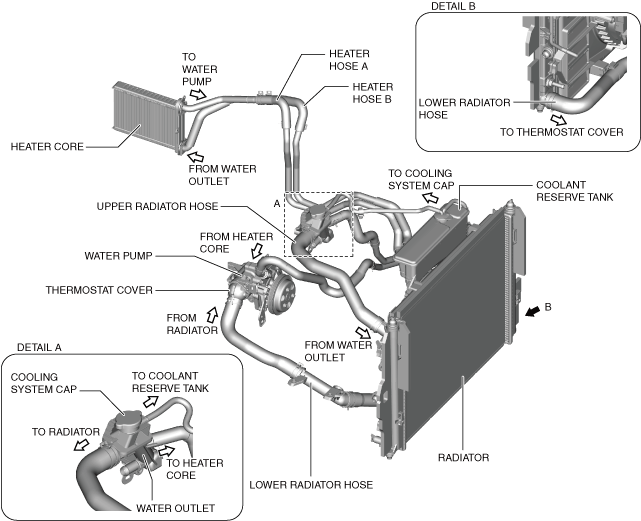

R.H.D. (Except SKYACTIV-G 2.0 (MT))

amxzzn00001924

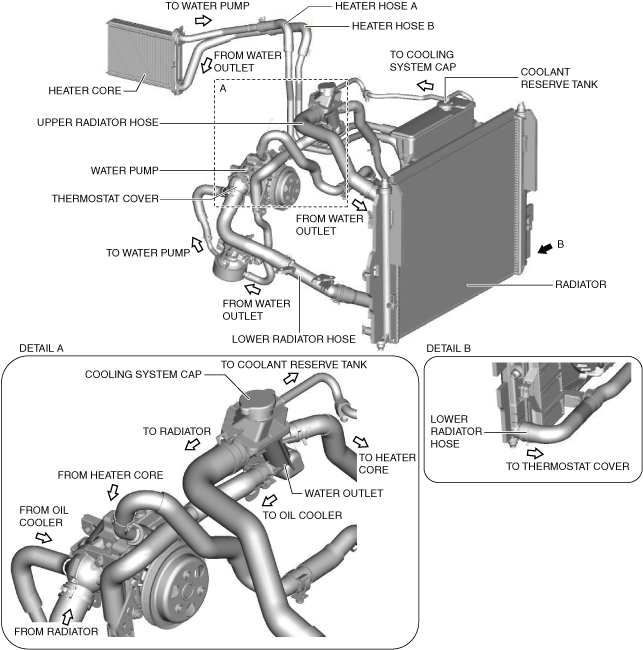

R.H.D. (SKYACTIV-G 2.0 (MT))

atrizt00000116

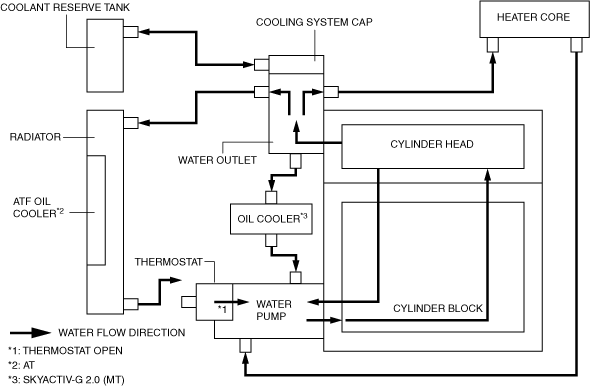

Flow Chart

amxzzn00001942

Structure

•  Consists of the following parts:

Radiator
Cooling system cap
Thermostat
Water pump
Cooling fan component
Cooling fan relay
Fan control module
