EMISSION SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0116zj110100

Outline

• Purifies contaminants (CO, HC, NOx) in the exhaust gas, blow-by gas, and evaporative gas exhausted from the vehicle.

Structural View

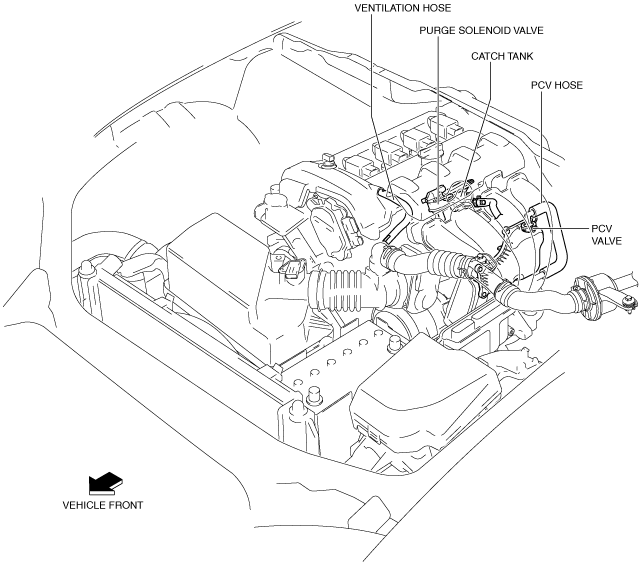

Engine compartment side

amxzzn00001099

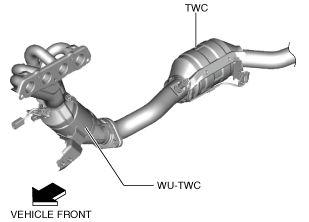

Exhaust system side

amxzzn00001100

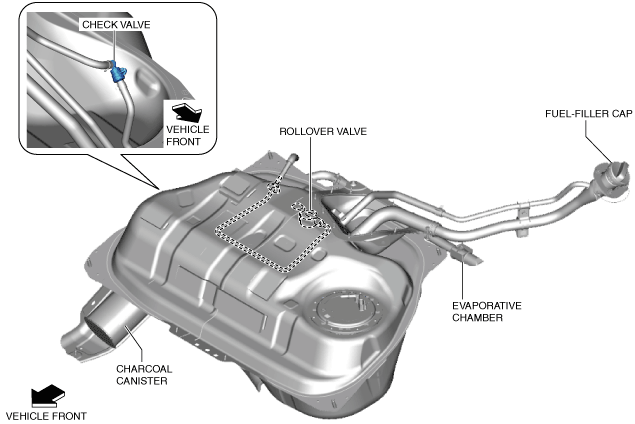

Fuel tank side

amxzzn00001101

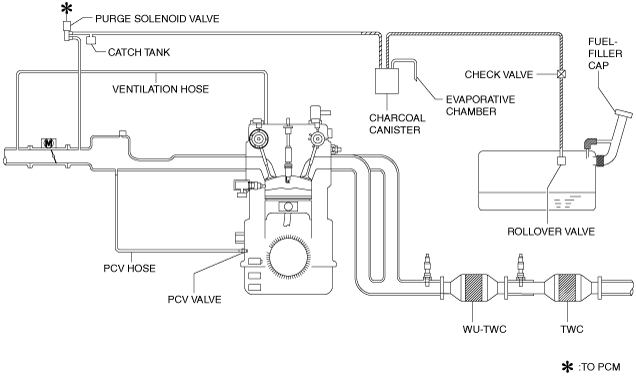

System Diagram

amxzzn00001102

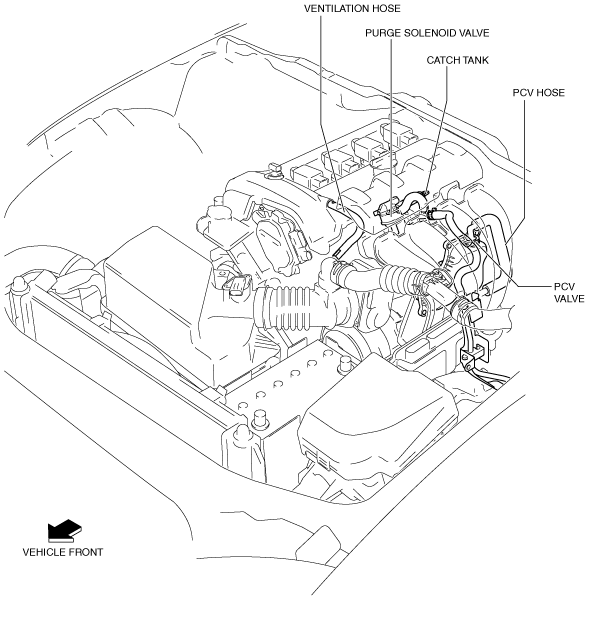

Vacuum Hose Routing Diagram

amxzzn00001103

Structure

• The emission system consists of the following parts:

Part/System name		Reference
Exhaust gas purification system (See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)	Catalytic converter	(See CATALYTIC CONVERTER [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Positive crankcase ventilation system (See POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)	PCV valve	(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Evaporative emission control system (See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)	Purge solenoid valve	(See PURGE SOLENOID VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
	Catch tank	(See CATCH TANK [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
	Charcoal canister	(See CHARCOAL CANISTER [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
	Evaporative chamber	(See EVAPORATIVE CHAMBER [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
	Fuel-filler cap	(See FUEL-FILLER CAP [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
	Rollover valve	(See ROLLOVER VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
	Check valve	(See CHECK VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
