CHARCOAL CANISTER INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0116zj800500

Leakage Inspection

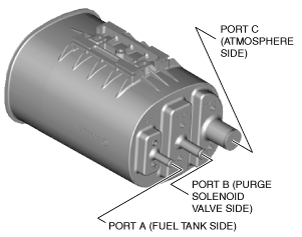

1.  Perform the following procedures:

•  Assemble the hose used for inspection to port A.

•  Cover ports B and C with the caps.

amxuuw00005269

Caution

•  Do not apply a pressure 20 kPa {150 mmHg, 5.91 inHg} or more to the charcoal canister for 1 min. or more. Doing so will damage the charcoal canister.

2.  Apply pressure (19.6 kPa {147 mmHg, 5.79 inHg}) through the hose, and verify that air does not leak from the charcoal canister.

amxuuw00005270

•  If there is airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

•  If there is no airflow, perform the following “Airflow Inspection”. (See Airflow Inspection.)

Airflow Inspection

Between port A and port C

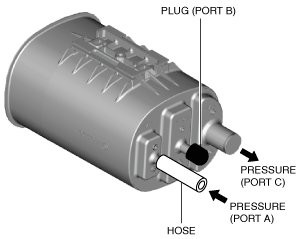

1.  Perform the following procedure to verify the charcoal canister airflow.

(1)  Plug the port B.

amxuuw00005271

(2)  Apply a pressure of 0.98 kPa {7.4 mmHg, 0.29 inHg} to port A.

(3)  Verify that there is airflow from port C.

•  If there is no airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

Between port B and port C

1.  Perform the following procedure to verify the charcoal canister airflow.

(1)  Plug the port A.

amxuuw00005272

(2)  Apply a pressure of 0.98 kPa {7.4 mmHg, 0.29 inHg} to port B.

(3)  Verify that there is airflow from port C.

•  If there is no airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
