DRIVE SELECTION SWITCH REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0]
id0121q4100200
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the selector lever knob. (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)
3. Remove the shift panel component. (See SHIFT PANEL REMOVAL/INSTALLATION.)
4. Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION.)

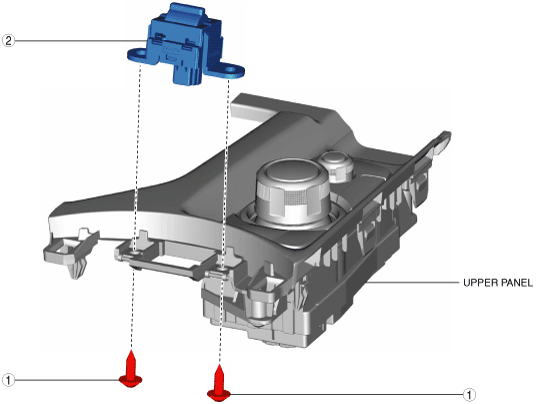

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
amxuuw00003475
|
|
1
|
Screw
|
|
2
|
Drive selection switch
|
Drive Selection Switch Installation Note
1. Install the drive selection switch so that the arrow shown in the figure is pointed toward the vehicle front.
amxuuw00003476
|
