STEERING SHIFT SWITCH REMOVAL/INSTALLATION [SJ6A-EL]

id051311112500

Warning

•  Handling the driver-side air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

1.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL.) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION.)

3.  Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

4.  Disconnect the steering shift switch wiring harness connector.

amxuuw00003540

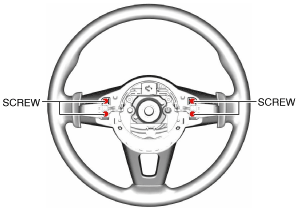

5.  Remove the screw.

amxuuw00003477

6.  Disconnect the steering shift switch connector.

amxuuw00003478

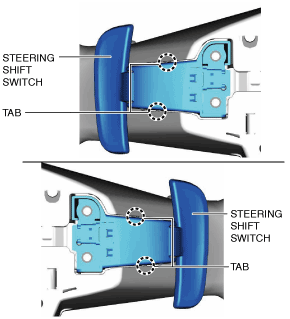

7.  Release the tab shown in the figure and remove the steering shift switch.

amxzzw00003802

8.  Using a precision flathead screwdriver, release the tab.

amxuuw00003541

9.  Remove the steering wheel cover. (See STEERING WHEEL COVER REMOVAL/INSTALLATION.)

10.  Remove the steering shift switch wiring harness from the steering wheel cover.

amxuuw00003480

11.  Install in the reverse order of removal.
