BLOWER FAN CONTROLLER INSPECTION

id071100006200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(4)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

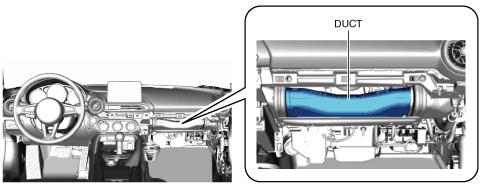

3.  Remove the duct.

amxzzw00003106

4.  Remove the auto leveling control module. (Without adaptive front lighting system (AFS) and adaptive LED headlights) (See AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION.)

5.  Remove the adaptive front lighting system (AFS) control module. (With adaptive front lighting system (AFS)) (See ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE REMOVAL/INSTALLATION.)

6.  Remove the adaptive LED headlights control module. (With adaptive LED headlights) (See ADAPTIVE LED HEADLIGHTS CONTROL MODULE REMOVAL/INSTALLATION.)

7.  Remove the blower fan controller. (See BLOWER FAN CONTROLLER REMOVAL/INSTALLATION.)

8.  Verify that the resistance between the terminals of the blower fan controller is as shown in the table.

amxuuw00004902

•  If there is any malfunction, replace the blower fan controller. (See BLOWER FAN CONTROLLER REMOVAL/INSTALLATION.)

•  If the blower motor operation is not normal even though no malfunction can be verified, inspect the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

Note

•  If a malfunction cannot be verified in the climate control unit, even if the climate control unit inspection is performed, it is possible that there is a malfunction in the blower fan controller internal circuit (electronic circuit). In this case, replace the blower fan controller.

Tester lead		Resistance (kilohm) (approx. quantity)
+	−
A	F	∞
F	A	∞
C	E	7.5
C	F	660
E	F	666
